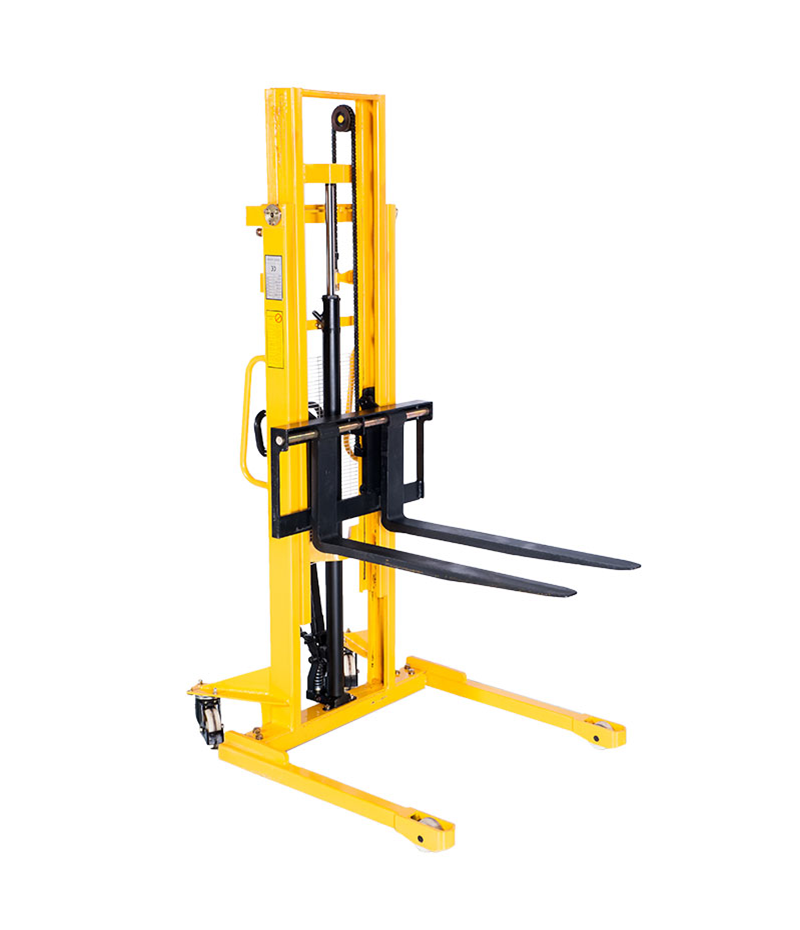

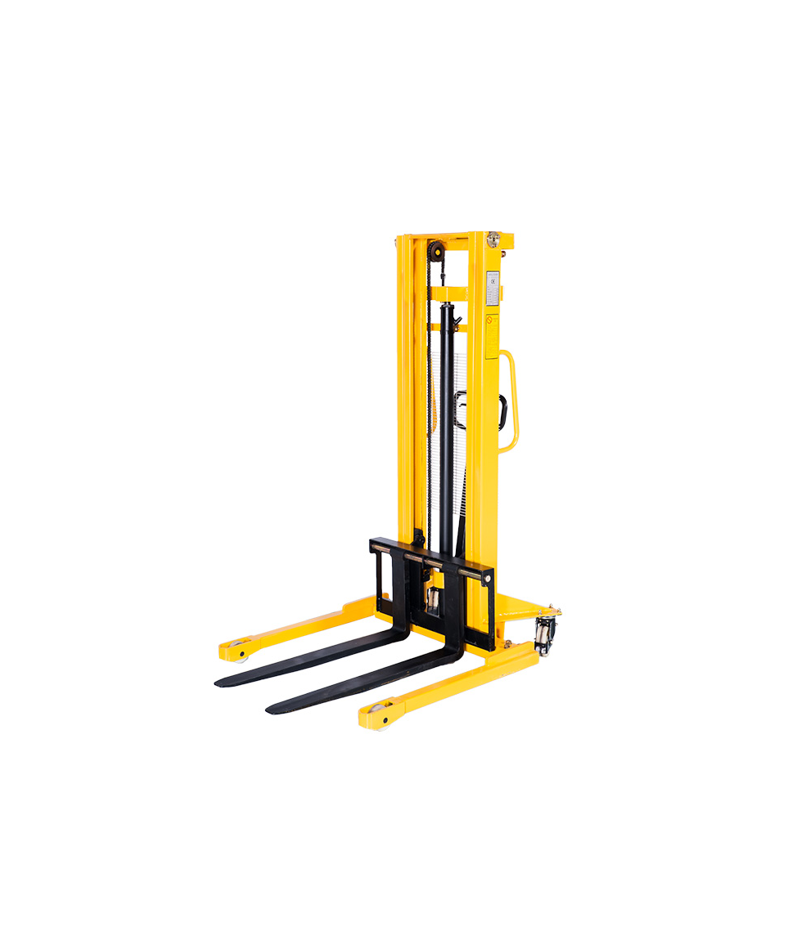

2T Manual Stacker – Wide Straddle

Description

Designed for efficient and safe material handling, the 2T Manual Stacker with Wide Straddle offers a robust lifting solution for various warehouse and workshop needs. With a strong 2000kg capacity and adjustable fork width, this stacker is perfect for handling a wide range of pallet sizes and loads.

Key Features:

• Load Capacity: 2000kg

• Max Lift Height: 1600mm

• Max Load at 1.6m Height: 900kg

• Overall Mast Height: 2020mm

• Lowered Fork Height: 75mm

• Overall Width: Adjustable between 1080mm and 1360mm for wide straddle support

• Fork Length: 1070mm

• Fork Width: 160mm

• Adjustable Fork Outside Distance: 210mm to 800mm, accommodating different pallet sizes

• Lifting Speed: Approximately 16 seconds to max height

• Steering Wheel Size: 150mm x 50mm

• Load Wheel Size: Double wheels, 80mm x 50mm

• Wheel Material: Durable Nylon for smooth maneuverability and longevity

This manual stacker features an easy-to-use hand pump for smooth lifting action and is designed with stability in mind thanks to the wide straddle legs, making it ideal for lifting and transporting heavy loads in narrow aisles or confined spaces.

Lead time: Estimate of 3-5 Working days depending on stock availability
