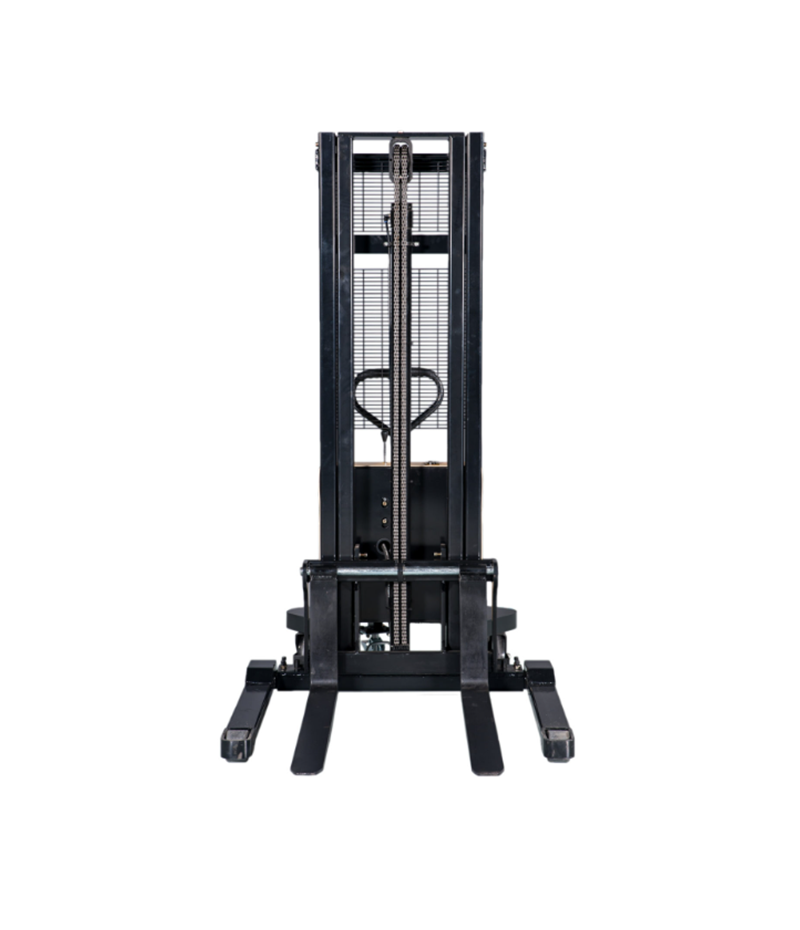

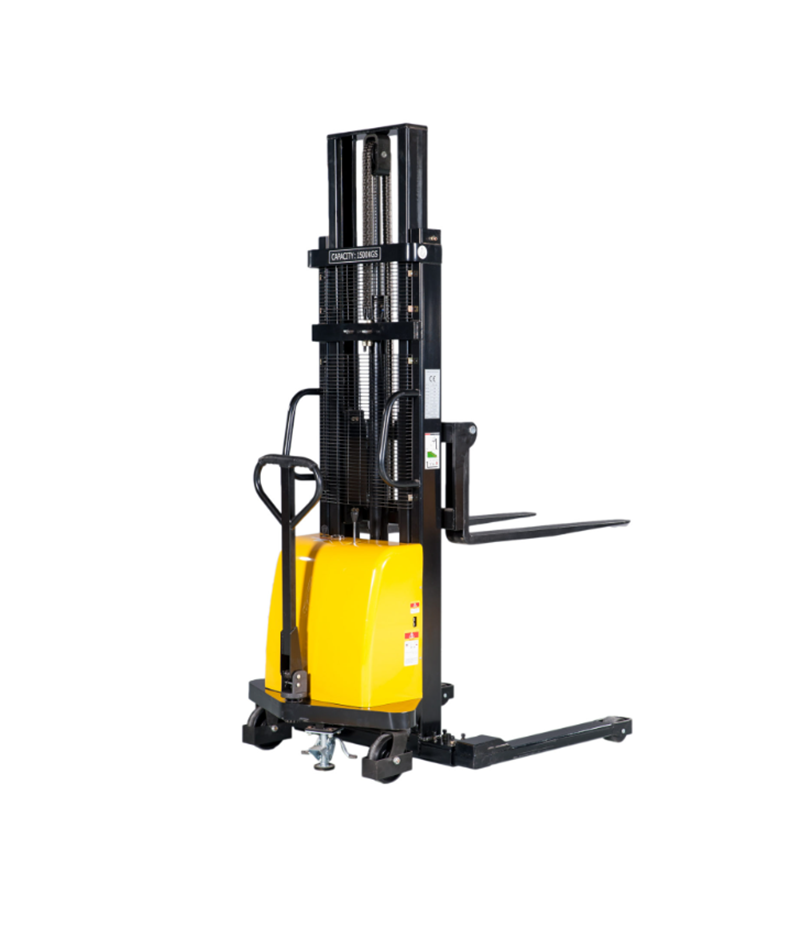

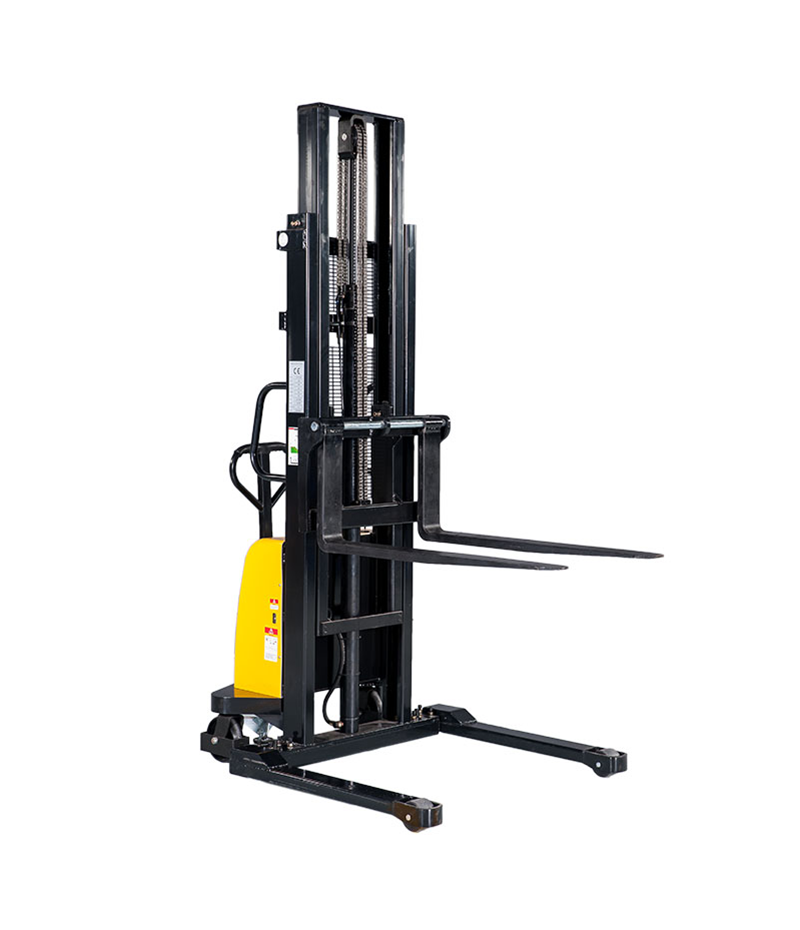

1.5T Semi Electric Stacker – 3M – Wide

Description

The 1.5T Semi Electric Stacker – 3M – Wide is a versatile and robust material-handling solution designed for lifting, stacking, and transporting heavy loads with efficiency and ease. Built for warehouses, factories, and storage facilities, it combines manual maneuvering with electric-powered lifting for reduced operator strain and improved productivity. Its wide straddle design offers enhanced stability and allows for handling of larger or unconventional pallet sizes.

With a maximum lift height of 3 meters and a rated capacity of 1500kg (1000kg at full height), this stacker ensures reliable performance in demanding operations. The adjustable fork width provides flexibility for various load sizes, while the powerful battery delivers extended usage time and quick recharging for minimal downtime.

Key Features:

• Capacity: 1500kg (1000kg at 3m)

• Lift Height: 3000mm

• Mast Extended Height: 3555mm

• Mast Lowered Height: 2085mm

• Lowered Fork Height: 85mm

• Fork Dimensions: Length – 1070mm | Width – 160mm

• Adjustable Outside Fork Distance: 230mm – 1150mm

• Lifting Speed: 0.08mm/s (laden), 0.15mm/s (unladen)

• Battery Performance: ~9 hours non-stop use or 4 days periodic use

• Charging Time: 3 hours

• Battery Specification: 12V 120Ah

Lead time: Estimate of 3-5 Working days depending on stock availability
