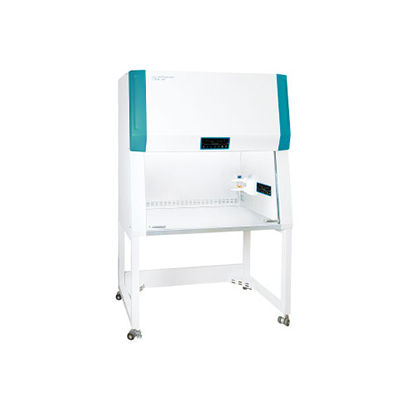

Vertical Laminar Flow, Advanced
R65,845.00
Vertical laminar flow clean benches with advanced digital control and various convenient features. With optional stand and Hepa filter Vertical laminar flow applications include: Non-toxic sap, DNA/RNA purification, plant tissue culture, solid medium division, electronic inspection, medical equipment assembly, pharmaceuticals, etc
Performance
- ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
- 0.3 μm and larger particulates are removed with 99.99% efficiency, leak-tight HEPA filter which satisfying class 10. (US Federal Standard 209E (average life span of HEPA filter: 3 years – it depends on the test room conditions) (optional)
- High-quality polyester fiber pre filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
- Exclusive diffusing muffler structure forms high quality laminar flow.
- Quiet and comfortable working environment. (less than 65dB)
Convenience
- Interlocking smart door system:
Simply open the door while UV-lamp is on. Interlocking smart door system will automatically turn off UV-lamp, turn on fluorescent lamp and blower instead of your manual control. - Two digital displays for the best convenience:
Even if any test is ongoing inside of the chamber, unit conditions such as velocity, temperature and humidity can be easily checked by the inner and outside displays. - Digital differential pressure sensor allows for easy verification of HEPA filter condition great for knowing when to change HEPA filter.
- When UV light intensity is lower than 80%, UV warning lamp is automatically on to let users know when to change UV-lamp.
- Comfortable front access to cartridge type of filters for easy replacement.
- Highly durable, rust-free, and easy-to-clean grade 304 stainless steel work surface.
- The inner left side magnetic board allows some memos and small tools.
Safety
- UV-blocking and impact-resistant tempered glass door.
- If the sash is opened during UV-lamp operation, UV lamp automatically turns off to protect users.
- Lighting mode selection by 3-position toggle switch (UV / off / fluorescent) preventing harmful UV exposure.
- Smoothly sliding front door stoppable at any height for user’s safety and easy transport of equipment into the workspace.
- Protection against over-current.
Technical Specifications
| MODEL | BC-01H | BC-11H | BC-21H | |||
|---|---|---|---|---|---|---|
|
Air flow type |
Vertical laminar flow |
|||||
|
Air volume (minimum / maximum) |
0 to 1020 cmh / 0 to 600 cfm |
0 to 2040 cmh / 0 to 1200 cfm |
||||
|
Laminar airflow velocity (m / s / fpm) |
0.3 / 59 |
0.45 / 89 |
0.3 / 59 |
|||
|
Air cleanliness within work space |
ISO 14644-1 class 4, US Federal Standard 209E class 10 |
|||||
|
Filters |
HEPA filter |
Typical efficiency of 99.99% on 0.3㎛ (US MIL- STD -282) ; Micro glass fiber Media, Particle board, AL separator, Neoprene gaskets |
||||
|
Pre filter |
Polyester fibers with an filter efficiency of 85% (A·F·I TEST) ; Aluminum frame, Polyester fiber media |
|||||
|
Noise level |
Typically < 65dB at blower speed |
|||||
|
Materials |
Main body |
Steel powder coating |
||||
|
Work surface |
Stainless steel, grade 304, brushed finish |
|||||
|
Windows (front / side) |
Colorless and transparent UV absorbing 5mm tempered glass |
|||||
|
Illumination |
Intensity (lux) |
> 650 |
||||
|
Fluorescent lamp (W) |
30 x 2ea |
32 x 2ea |
||||
|
Electronically ballasted Fluorescent Lamp |
||||||
|
UV lamp (W) |
25 x 1ea |
30 x 1ea |
25 x 2ea |
|||
|
Electronically ballasted UV Lamp |
||||||
|
Electric socket outlets |
230V socket |
|||||
|
Dimension (W×D×H) |
Interior (mm / inch) |
945 x 585 x 670 |
1245 x 585 x 670 |
1845 x 585 x 670 |
||
|
Exterior without stand (mm / inch) |
1135 x 620 x 1150 |
1435 x 620 x 1150 |
2035 x 620 x 1150 |
|||
|
Exterior with stand (mm / inch) |
1135 x 620 x 1860 |
1435 x 620 x 1860 |
2035 x 620 x 1860 |
|||
|
Net weight (body) (kg / lbs) |
140 / 308.6 |
185 /407.9 |
225 / 496 |
|||
|
Net weight (body + stand) (kg / lbs) |
170 / 374.8 |
215 / 474 |
255 / 562.2 |
|||
|
Electrical requirements (230V, 1ph) |
60Hz / 1.25 A | 50Hz / 1.38 A | 60Hz / 1.57 A | 50Hz / 1.73 A | 60Hz / 2.09 A | 50Hz / 2.30 A |
|
Cat. No. |
AAHA5011K | AAHA5012K | AAHA5021K | AAHA5022K | AAHA5031K | AAHA5032K |
|
Electrical requirements (120V, 1ph) |
60Hz / 2.62 A | 60Hz / 3.27 A | 60Hz / 4.36 A | |||
|
Cat. No. |
AAHA5013U | AAHA5023U | AAHA5033U |
Accessories
| HEPA filter:Â 99.99% efficient HEPA filter, industry standard size for economical replacement. | Stand with casters:Â Stand with casters : Mobile stand made of powder-coated steel ideal for easy relocation. | Pre filter:Â Easy-to-replace pre-filter for trapping larger particles and extending the life of HEPA filters. |
* Filters
| CAT. NO. | DESCRIPTION | BC-01H/B | BC-11H/B | BC-21H/B |
|---|---|---|---|---|
| AAAB1601 | HEPA filter | – | – | |
| AAAB1602 | – | – | ||
| AAAB1603 | – | – | ||
| AAAB1611 | Pre filter | – | – | |
| AAAB1612 | – | – | ||
| AAAB1613 | – | – |
* Others
| CAT. NO. | DESCRIPTION | BC-01H/B | BC-11H/B | BC-21H/B |
|---|---|---|---|---|
| AAAB1621 | Stand with casters | – | – | |
| AAAB1622 | – | – | ||
| AAAB1623 | – | – | ||
| AAAB1631 | UV lamp(230V) | – | – | |
| AAAB1633 | – | – | ||
| AAAB1635 | – | – | ||
| AAAB1632 | UV lamp(120V) | – | – | |
| AAAB1634 | – | – | ||
| AAAB1636 | – | |||
| AAAB1561 | Gas cock | |||
| AAAB1571 | Differential pressure gauge (for BC-B) |
| Weight | 140 kg |
|---|---|
| Dimensions | 44.7 × 24.4 × 77.2 cm |
