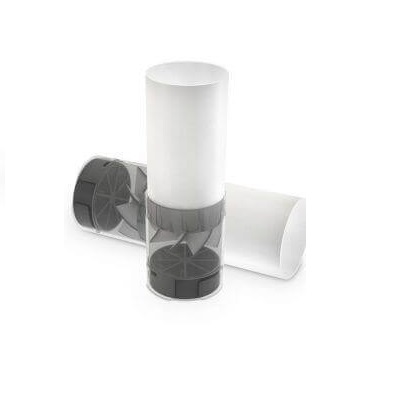

Spirometer AirNext – Turbine & Mouthpiece

Air Next works with iOS and Android devices and connects via bluetooth. Air Next is powered by 2 x 1.5 V AAA alkaline batteries. Air Next is designed to work with single-use NuvoAir disposable turbines. When performing a spirometry test, the user exhales into the turbine. The airflow generated sets a rotor in motion. Air Next registers the speed of the spinning rotor, converts it and transfers the data via Bluetooth to the smartphone app
Click here to see product brochure and usage guide. Click here to read more about Nebulizer.
• Flow/volume measurement system: Bi-directional optical
• Measurement method: Infrared interruption
• Power supply: 2 x 1.5V AAA alkaline batteries
• Dimensions: 98 x 62 x 26 mm
• Weight: 75g
• Flow range: 0 – 14 L/s
• Volume accuracy: ± 3%
• Flow accuracy: ± 5%
• Dynamic resistance at 12 L/s: <0.5 cm H2O/L/s • Operating conditions: T: min +10°C/max +40°C, RH: min 10%/max 95%, ALT: max 2000m • Conditions of storage: T: min -20°C/max +60°C, RH: min 10% /max 95%, P: min 500mBar/max, ALT: ≤ 5000m • Life expectancy: 10 years • Regulations applicable: MDD 93/42/EEC, ISO 26782, ISO 23747, Electrical Safety IEC 60601-1, Electro Magnetic Compatibility • Bi-directional optical flow/volume measurement system • Infrared interruption measurement method • Powered by 2 x 1.5V AAA alkaline batteries • Dimensions: 98 x 62 x 26 mm • Weight: 75g • Flow range: 0 – 14 L/s • Volume accuracy: ± 3% • Flow accuracy: ± 5% • Dynamic resistance at 12 L/s: <0.5 cm H2O/L/s • Life expectancy: 10 years
