Oxygen Bomb Calorimeter ASTM D5865

Oxygen Bomb Calorimeter ASTM D5865

Bomb Calorimeter ASTM D240 Calorific Value Measurement Bomb Calorimeter by Bomb Method ASTM D5865

Oxygen bomb calorimeter is an instrument specifically designed to accurately measure the heat of combustion of substances.

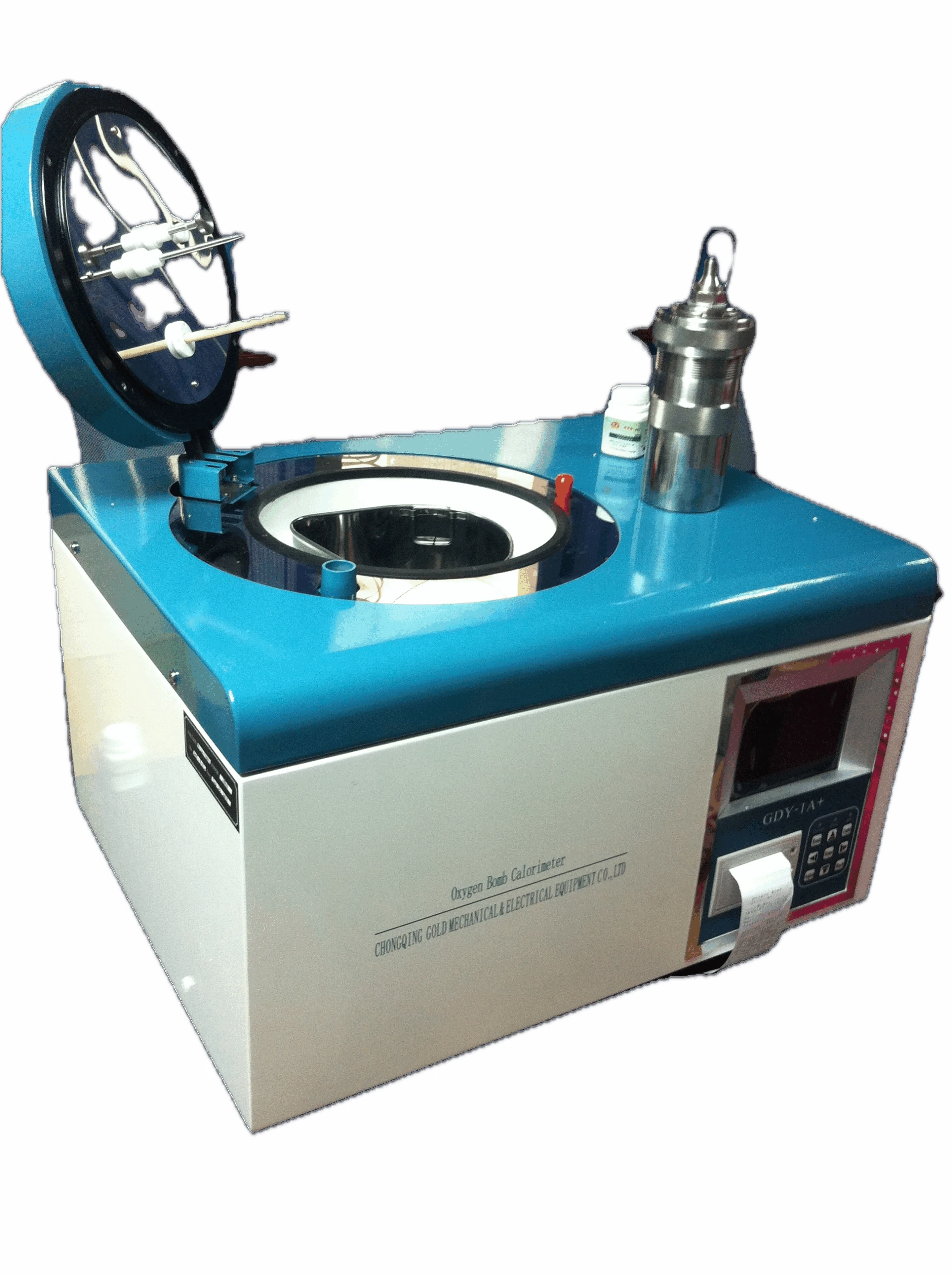

From the appearance, it mainly has a relatively sturdy oxygen bomb. This oxygen bomb is like a specially designed small container, which is the core part of the entire instrument. Its material is very sturdy and can withstand high pressure, as high-pressure oxygen needs to be filled inside during the measurement process. The interior of the oxygen bomb is where the tested sample and ignition wire are placed, and the sample burns in this closed space filled with oxygen.

Oxygen Bomb Calorimeter ASTM D5865
The Bomb Calorimeter is designed and made according to GB/T213-2008 Method for the determination of the calorific value of coal, GB/T384-1988 Method for the determination of the heat value of petroleum products and Calibration and Inspection Regulation of People’s Republic of China JJG672-2001 Oxygen Bomb Calorimeter, as well as the Shanghai Enterprise Standard Q/YXYY 10 GDY-1 Oxygen Bomb Calorimeter.
The Bomb Calorimeter adopts high precision temperature sensor and high-power A/D converter, and uses single chip microprocessor to form an intelligent temperature data collection and transfer system. It uses microcomputer to form an automatic, convenient, rapid, and intelligent instrument. If the user operates the instrument carefully and input all kinds of parameters correctly, the desired measurement data will be getted. The instrument can be widely used to determine the calorific value of materials such as coal, oil, coke, paraffin and other combustible materials etc. It is an ideal option of the thermoelectricity, metallurgical, cement, chemical industries, scientific research institutes, college and universities. Oxygen Bomb Calorimeter ASTM D5865

Oxygen Bomb Calorimeter ASTM D5865
Based on the combustion reaction, heat is generated to raise the temperature of the surrounding medium (usually water). When measuring, place the accurately weighed sample in a small crucible or other suitable container inside an oxygen bomb, and connect the ignition wire. Then seal the oxygen bomb and fill it with sufficient oxygen. Then place the oxygen bomb into a container containing a certain amount of water, which has good insulation properties and can reduce heat loss to the surrounding environment.

1 Repeatability error (RSD): ≤0.2 %(Grade C);
2 Ambient temperature 15 ~ 28℃, the temperature fluctuation should not be greater than 1℃ during one determination procedure
3 Temperature controlling range 10~35℃;
4 Calorific value ±60 J/g;
5 Pressure resistance by oxygen bomb 20MPa;
6 Heat capacity 14400 J/K ~ 14500J/K;
7 Ambient humidity less than 85%
8 Temperature resolution 0.001K;
9 Power supply AC 220V±5%, 50Hz
10 Overall dimension 600mm×480mm×460mm(L×W×H)

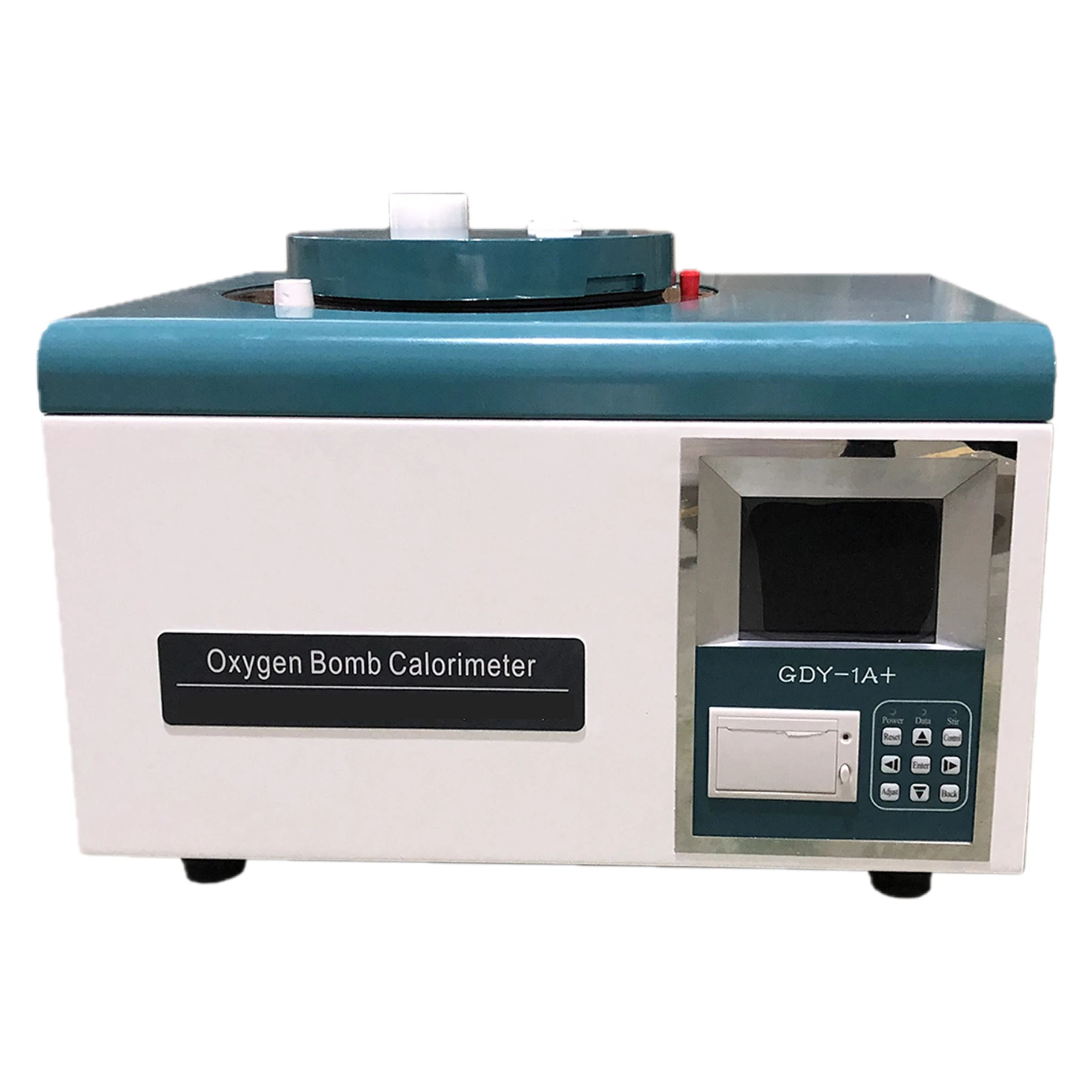

11: Model. GDY-1A+
12. Name Oxygen Bomb Calorimeter ASTM D5865

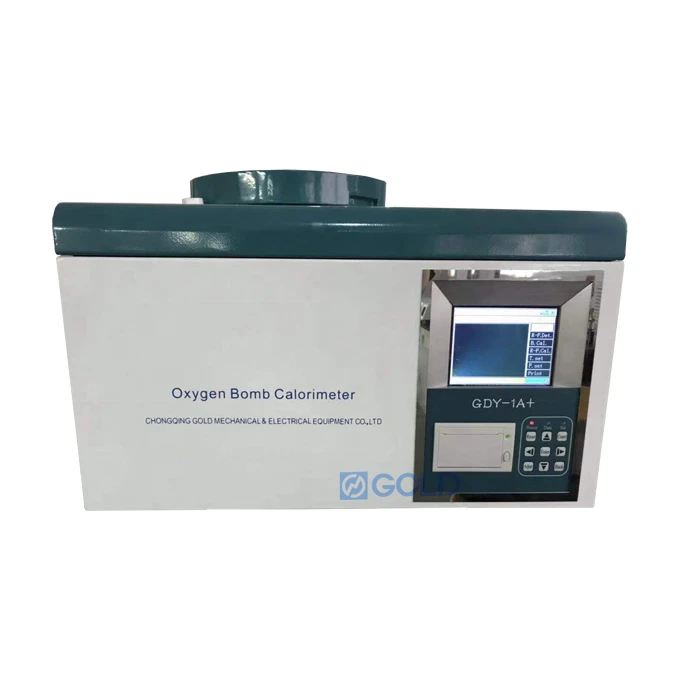

1. The intelligent instrument adopts microcontroller control technology, color LCD screen display, high-precision temperature sensor, and high-performance A/D conversion devices, forming a high degree of automation, excellent video effect, convenient use, and easy data organization.
2. The experimental process is fully automated. After the samples are placed, various correct parameters are inputted, and each experimental process is automatically completed without manual intervention. After the experiment is completed, the measurement data can be directly printed.
3. Adopting a self sealing oxygen bomb, the entire structure is made of stainless steel, with sufficient strength to withstand a water pressure test of 20MPa at room temperature.
4. The inner water tank is made of stainless steel sheet with a pear shaped cross-section. The water tank has a capacity of 3000 grams and is equipped with an electric stirrer to ensure uniform temperature of the water bath inside. Oxygen Bomb Calorimeter ASTM D5865
5. The outer water jacket is a double-layer container that is filled with water during the experiment. The water jacket stirrer is used to evenly distribute the water temperature inside the cylinder, creating a constant temperature environment that meets the requirements of the experiment.

Oxygen bomb calorimeter has applications in many fields. Oxygen Bomb Calorimeter ASTM D5865
In the field of chemistry, it can be used to measure the combustion heat of various chemical substances (such as organic compounds, fuels, etc.), helping to study energy changes in chemical reactions.
In the field of energy, such as studying the calorific value of coal, petroleum products, biomass fuels, etc., it is crucial to evaluate the quality and utilization efficiency of these energy sources.
In the food industry, it can also be used to measure the energy content of food and provide data for nutritional research. Oxygen Bomb Calorimeter ASTM D5865
