Name: Multi Viewing Multi Head Microscope
SKU: BS-2030MH4B
Availability: InStock

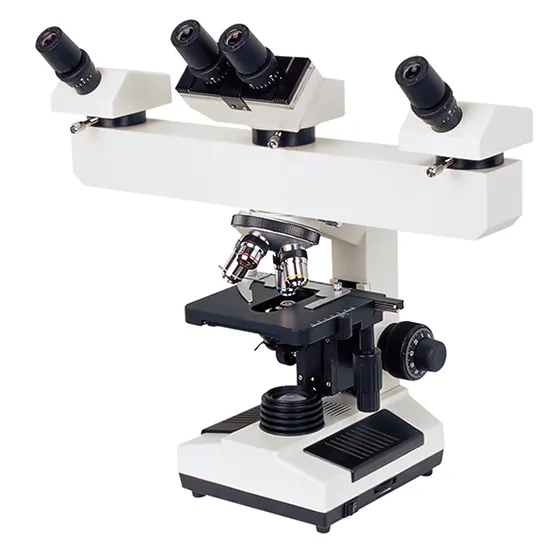

Multi Viewing Multi Head Microscope

Multi-Viewing Multi-Head Microscope: BS-2030MH4B

Microscope With Multi-Viewing Multi-Head

Lead Time: 3-4 Weeks

Introduction
BS-2030MH Series Multi-Head Microscopes are equipped with multi-head for more persons observing at the same time.

Multi Viewing Multi Head Microscope

The optical system is high quality and reliable.

Features
1. Sharp image display with excellent optical system.
2. Small space occupancy with integral stand design, low environment requirement with anti-mould technology.
3. Users friendly and comfortable operation with ergonomic design.

Application
– BS-2030MH Series Multi-Head Microscopes are mainly used in medical teaching and biological teaching.

They also can be used for biological analysis for more experts at the same time.
They can be widely used in medical and sanitary establishments,laboratories, institutes, colleges and universities.

Specification Multi-Viewing Multi-Head Microscope: BS-2030MH4B

Item	Specification	BS-2030 MH4A	BS-2030 MH4B	BS-2030 MH10
Viewing Head	Sliding Binocular Head, inclined at 45°, Interpupillary Distance: 55-75mm, Anti-mould	2PCS	1PC	5PCS
Monocular Head, inclined at 45°, Anti-mould	2PCS
Sliding Trinocular Head, inclined at 45°, Interpupillary Distance: 55-75mm, Anti-mould	○	○	○
Eyepiece	Wide Field Eyepiece WF10×/18mm	4PCS	4PCS	10PCS
Wide Field Eyepiece WF16×/11mm
Nosepiece	Quadruple Nosepiece	●	●	●
Objective	Achromatic Objective 4×, 10×, 40×, 100×	●	●	●
Achromatic Objective 20×, 60×	○	○	○
Semi- Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×	○	○	○
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×	○	○	○
Condenser	Abbe Condenser NA1.25	●	●	●
Focusing	Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm	●	●	●
Stage	Double Layers Mechanical Stage 140×140mm/ 75×50mm	●	●	●
lllumination	1W S-LED illumination, Brightness adjustable	●	●	●
Halogen Lamp 6V/ 20W	○	○
Halogen Lamp 24V/ 100W	○
Pointer	Green LED Pointer, Brightness Adjustable	●

Multi Viewing Multi Head Microscope

Dimensions	78 × 35 × 35 cm

Multi Viewing Multi Head Microscope
