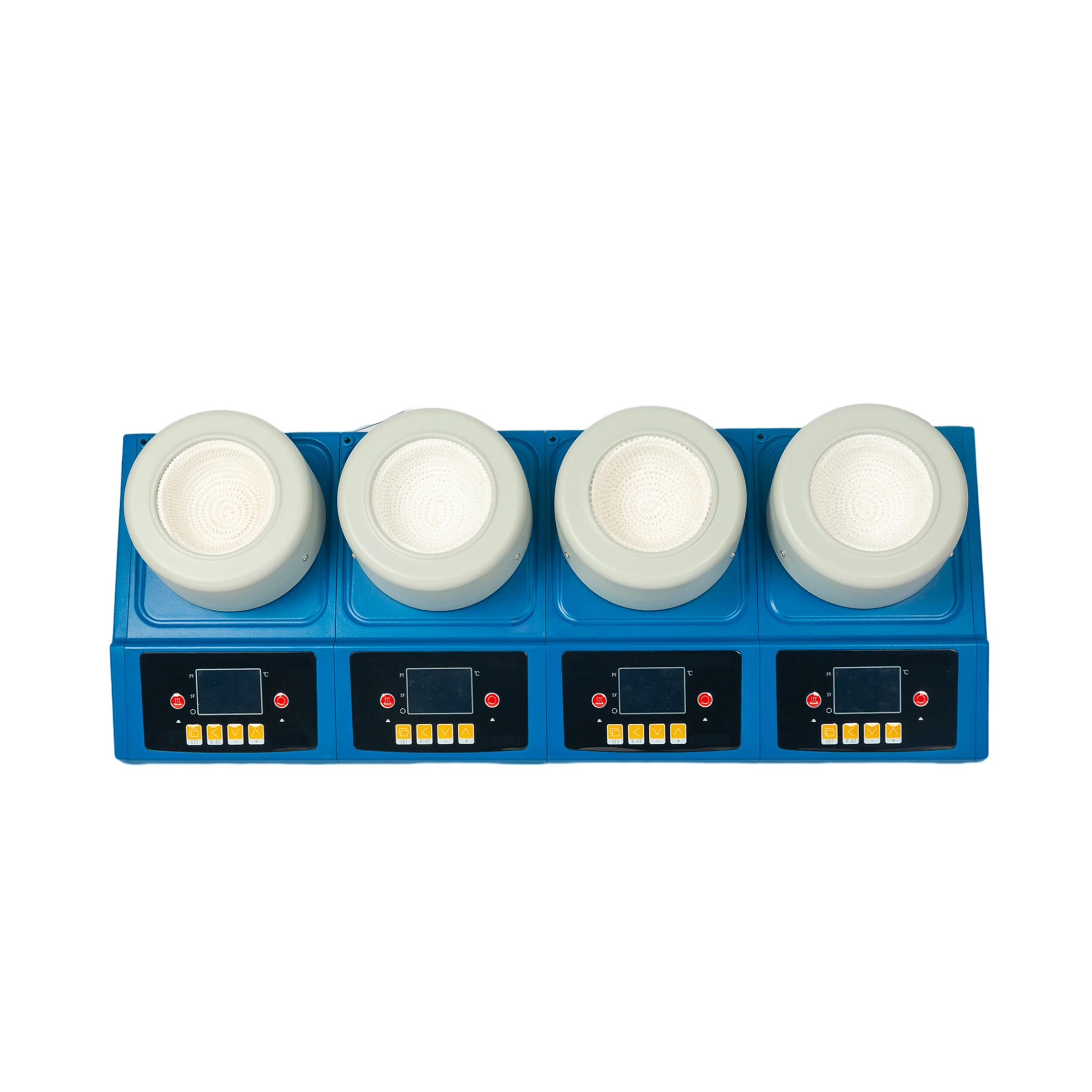

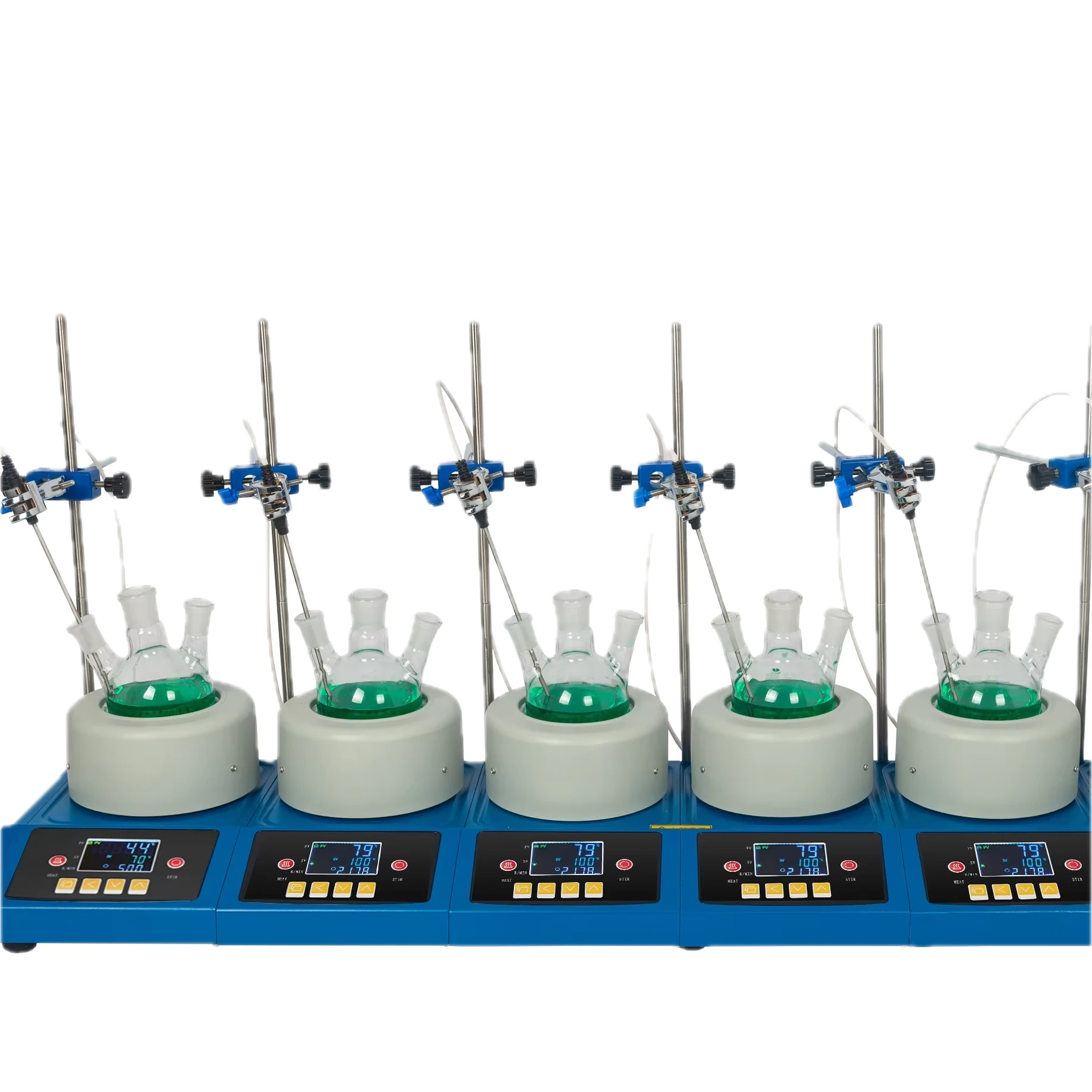

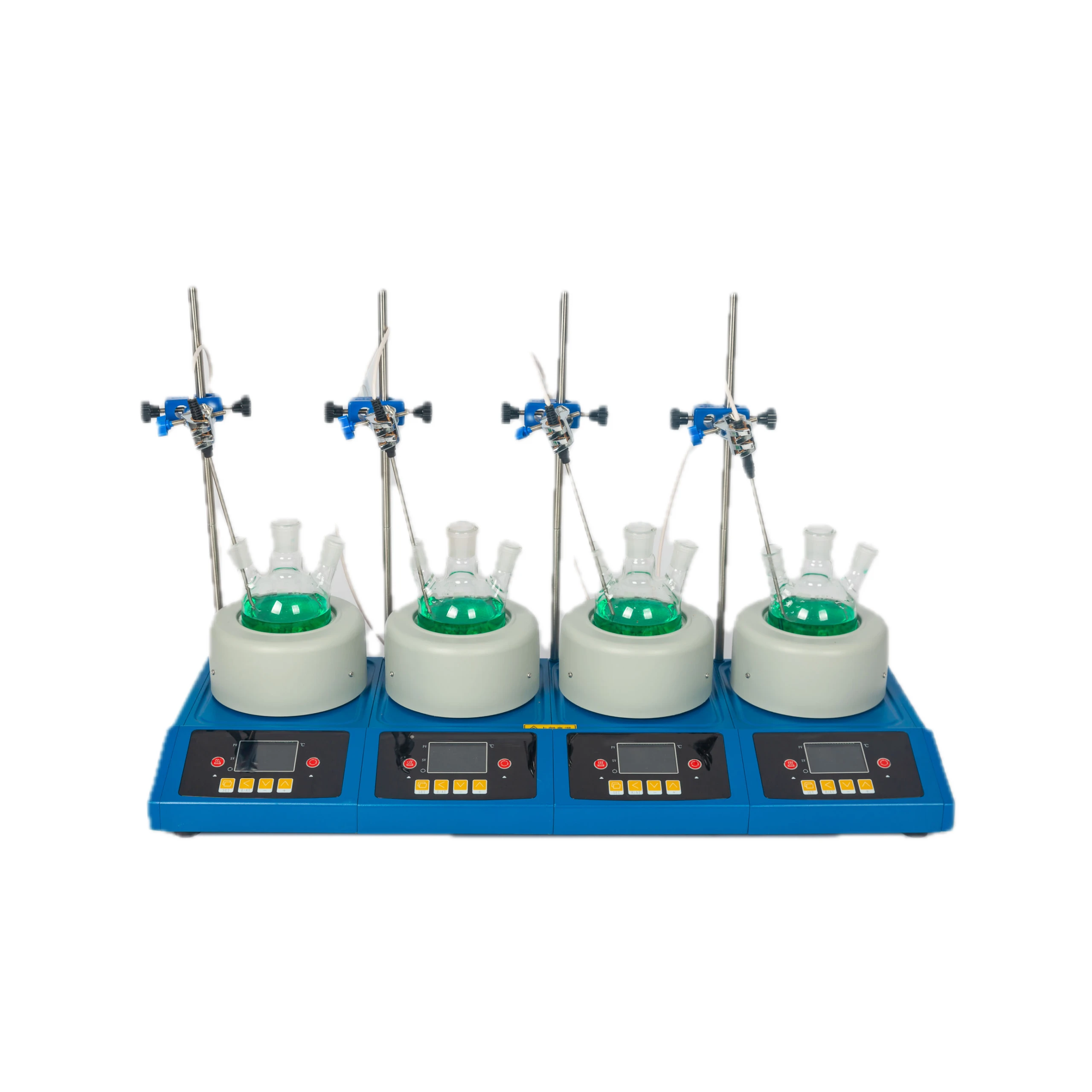

Multi Positions Heating Mantle

Multi Positions Heating Mantle

Heating Mantle with Stirrer Function

A multi-position heating mantle is a laboratory device used to simultaneously heat, extract, or distill multiple liquid samples in round-bottom flasks.

By featuring 2 to 6 individually controlled heating zones, it maximises research efficiency, standardises parallel experiments, and saves valuable bench space.

Core Laboratory UsesSolvent Extractions: Heavily utilised for standardising methods like Soxhlet extraction (for fat, oil, and pesticide analysis) or Kjeldahl digestion.
Distillation & Refluxing: Used for separating liquids based on their boiling points and boiling solvents continuously without losing volume.
Parallel Chemical Synthesis: Allows chemists to run multiple varying reactions simultaneously to test different catalysts, temperatures, or variables.
Solvent Evaporation: Gently and uniformly removes organic solvents from solutions, especially in bulk or routine testing.

Multi Positions Heating Mantle

Heating Mantle with Stirrer Function

Key Benefits & Advantages
Independent Controls: Each heating position has its own temperature regulator or digital PID controller.
You can run 6 completely different experiments or replicate one at multiple thermal gradients.
Safety & Uniformity: Provides a much safer, uniform heating surface for flammable organic solvents compared to traditional hotplates or open flames.
Space Efficiency: Consolidates multiple heating mantles, support stands, and wiring into a single, centralized piece of equipment.

Multi Positions Heating Mantle

Heating Mantle with Stirrer Function

Rated Power 60 kW.
warranty 2 years
customised support OEM
Max Temperature. 380°C
model number ZNDLTCL6500
brand name AIBOTE
Product Type 500ml and 1000ml Multi Positions Digital Display Heating Mantle
Stir and heat volume. 500ML and 1000ml for round bottom flask
Temperature range ambient to 380 degree
Stir display digital display +/- 1 rpm
Operate type can be operate separately for each hole
Temp Accuracy digital display ,+/- 1 degree
Temperature control PID Automatic Control
Stir speed 0~ 2500rpm, +/- 1 rpm
Thermocouple type PT100
Mantle Type Multi Positions
Single package size 130X33X19 cm
Single gross weight 38.000 kg

Multi Positions Heating Mantle

Heating Mantle with Stirrer Function
