Microplate Reader
Lead Time: 2-4 Weeks

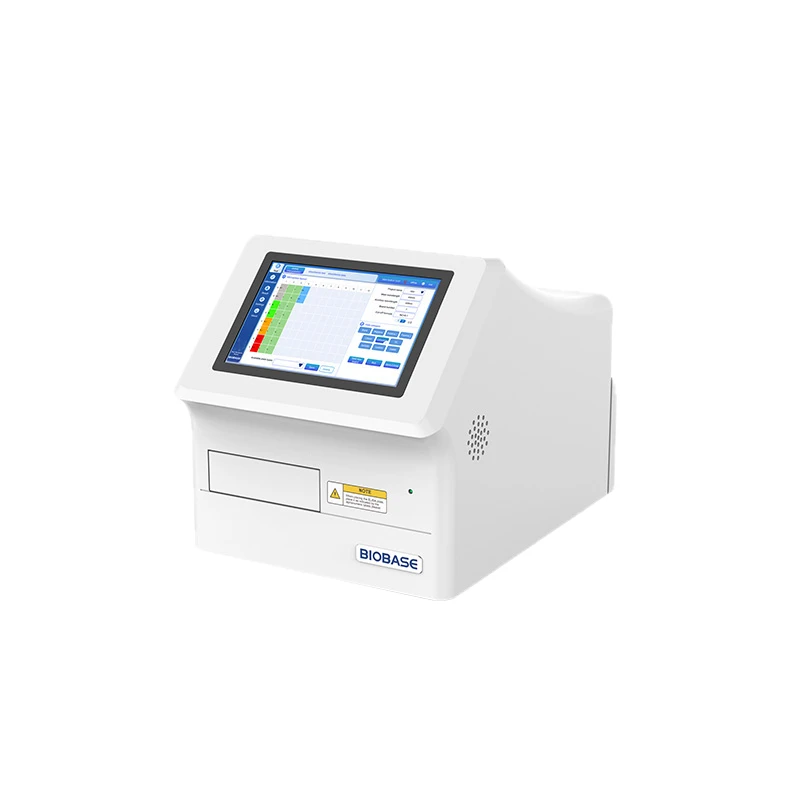

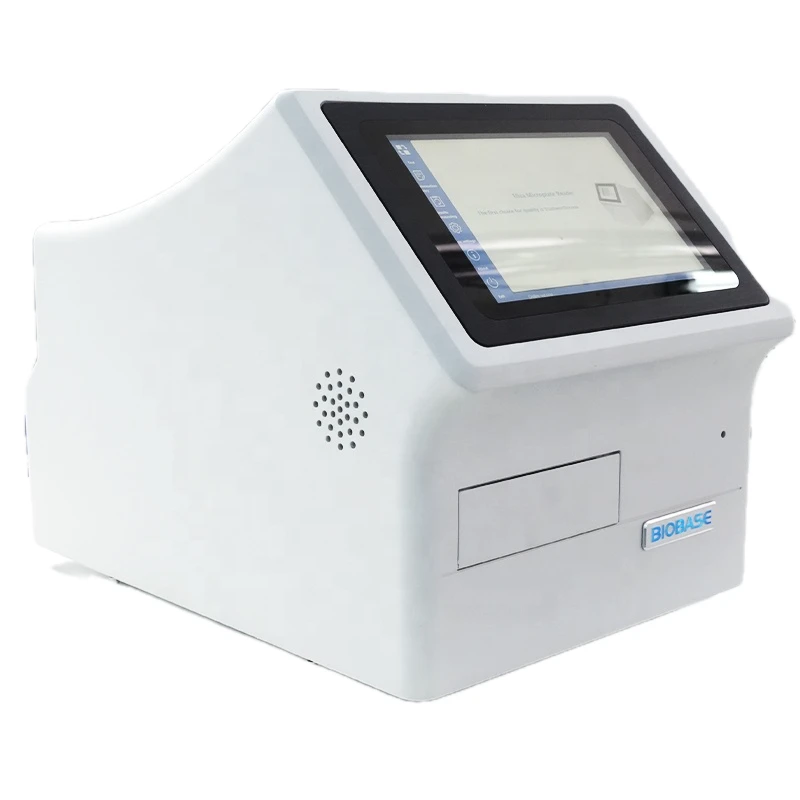

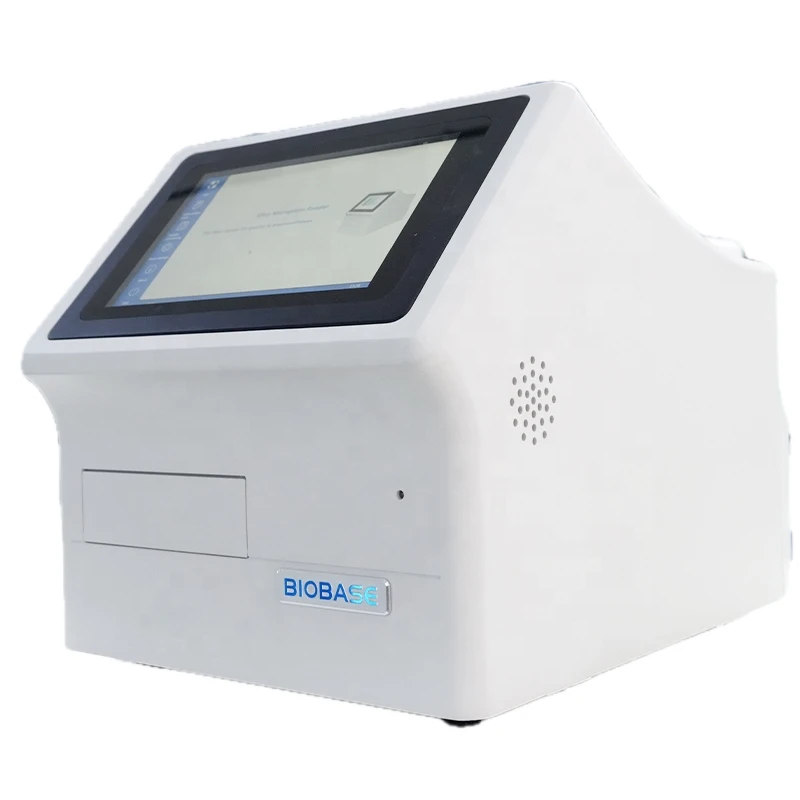

R ELISA Microplate Reader BK-EL10D 10.1-inch Large Touch Screen Vertical 8 Optical Channels for Laboratory A microplate reader is a laboratory instrument used to measure the absorbance, fluorescence, or luminescence of multiple samples in a microplate.
This allows for high-throughput analysis in a variety of fields, such as drug discovery and scientific research, by quantifying biological and chemical reactions in 96, 384, or even 1536 wells at once.
How it works
-
- Light source: A light source shines a filtered beam through the plate wells.
- Detection: A detector measures the amount of light that is absorbed, emitted as fluorescence, or produced through luminescence as it passes through each well.
- Quantification: This optical signal is converted into data that a computer can analyze to quantify the concentration or properties of the sample in each well.
Applications
- Drug discovery:
Researchers use microplate readers to test the effects of potential drug compounds on biological samples.
- ELISA:
It is commonly used to read the results of ELISA (enzyme-linked immunosorbent assay) tests to detect and quantify proteins.
- Cell-based assays:
Readers are used for assays that measure cell proliferation, viability, and cytotoxicity.
- Quality control:
They are used in manufacturing processes to ensure the quality of products.
- Gene expression analysis: Microplate readers can be used to measure gene expression levels.
Features:
- 10.1-inch large touch screen operation(Except BK-EL10B).
- High precision and accurate results.
- Software: Single wavelength and double wavelengths detection methods.
- BK-EL10D is the Windows operating interface, and BK-EL10DA is the Android operating interface.
Microplate Reader Technical Parameters
|
Model |
BK-EL10A |
BK-EL10B |
BK-EL10C |
BK-EL10D |
BK-EL10DA |
|
Measurement Channel |
Vertical 8 optical channels |
||||
|
Plate Type |
96-well microplate |
||||
|
Wavelength Range |
400~750nm |
340~850nm |
|||
|
Filter |
Standard 4 wavelengths of 405, 450, 492, 630nm(BK-EL10A, BK-EL10B, BK-EL10C) |
||||
|
Linear Range |
0.000~3.000Abs |
||||
|
Reading Range |
0.000~4.000Abs |
0.000~4.500Abs |
|||
|
Resolution |
0.0001Abs |
||||
|
Repeatability |
CV≤0.2% |
||||
|
Stability |
≤±0.003Abs/10min |
||||
|
Sensitivity |
≥0.01L/mg |
||||
|
Channel Difference |
≤0.02Abs |
||||
|
Vibration Plate Function |
3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) |
||||
|
Incubation Function |
Time Range: 0~60min |
||||
|
Software |
Detection Mode |
Single/double wavelength |
|||
|
Qualitative |
Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other |
||||
|
Quantitative |
Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis |
||||
|
Others |
Display |
10.1 inch color touch capacitive screen(BK-EL10A, BK-EL10D, BK-EL10DA) |
|||
|
Operating Mode |
Touch screen operation, equipped with capacitive stylus, support for external keyboard and mouse(BK-EL10A, BK-EL10D, BK-EL10DA) |
||||
|
Printer(Optional) |
BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer(A4 printer can be |
||||
|
Interface |
USE2.0*4, RJ45 network port*1, RS-232*1(BK-EL10A, BK-EL10D, BK-EL10DA) |
||||
|
Power Supply |
AC100~240V, 50/60Hz |
||||
|
Instrument Size(W*D*H) |
450*320*300mm |
450*320*190mm |
450*320*300mm |
495*340*370mm |
|
|
Package Size(W*D*H) |
540*400*460mm |
585*425*405mm |
610*440*475mm |
||
|
Net/Gross Weight |
13/15kg |
10/12kg |
11/13kg |
12/14kg |
