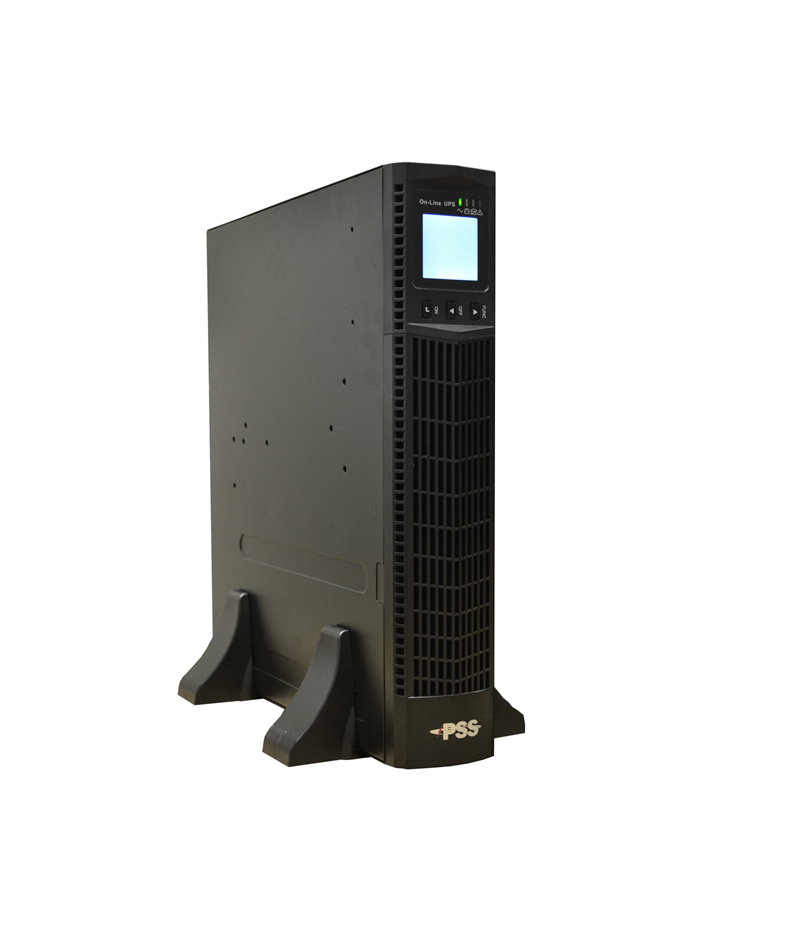

M-SERIES 2KVA ON-LINE RACK TOWER UPS

INTRODUCTION

Sleek in design, these true on-line UPS’s provide the best protection for your expensive server room equipment. The double conversion technology makes this unit an excellent stabilizer for power. Pure sine wave is always provided, whether on the mains or battery. The standard unit comes with 10-minute internal batteries, alternatively, battery banks can be provided to supply up to 4 hours’ runtime. Designed for the server room environment, you will have to look far to find a better unit.

APPLICATION

PC’s, Workstations, Network Centres, SOHO, Servers, Industry Equipment, Medical Equipment or Other Critical Systems

FEATURES

• Rack-tower convertible
• Two directions LCD display
• On-line double conversion
• Output power factor: 0.9
• Extended runtime with up to four extended battery modules
• Optimized battery configuration: 1KVA-24V, 2KVA-48V, 3KVA-72V
• Emergency shutdown through remote emergency power-off (EPO) port
• Three segment charging mode to increase battery service life and optimize recharge time
• Diverse options of accessories, intelligent management
• Intelligent slot – optional SNMP/dry contact board
• Input neutral and live wires reverse detection
• Economic operation mode (ECO)
• Wide input voltage range
• Self-testing on UPS start-up
• Cold Start (DC)
• Hot-swappable battery pack
• Output voltage can be set
• Full digital control (DSP)

*****

PLEASE ENSURE THAT NO

LASER PRINTERS, PHOTO COPIERS

FLUORESCENT LIGHTS OR MOTORS

ARE CONNECTED TO THIS UPS

*****

What’s in the Box

• 1 x UPS
• Manual
• Intelligent Software
• 2 x IEC Male to Female
• Serial Cable

Dimensions:

605 X 710 X 205 (W-D-H)mm 25kg
