Jacketed Bioreactor Borosilicate 3.3 Glass Reactor

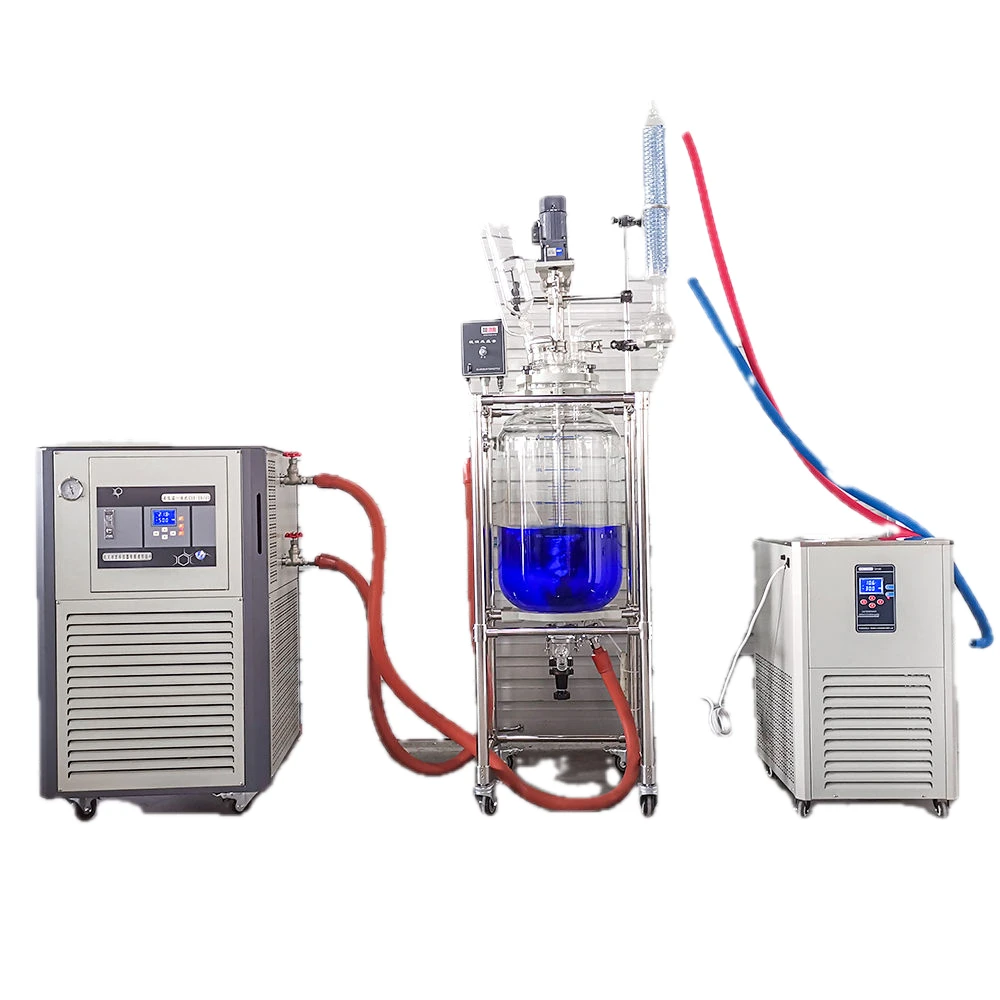

Jacketed glass reactor is mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.

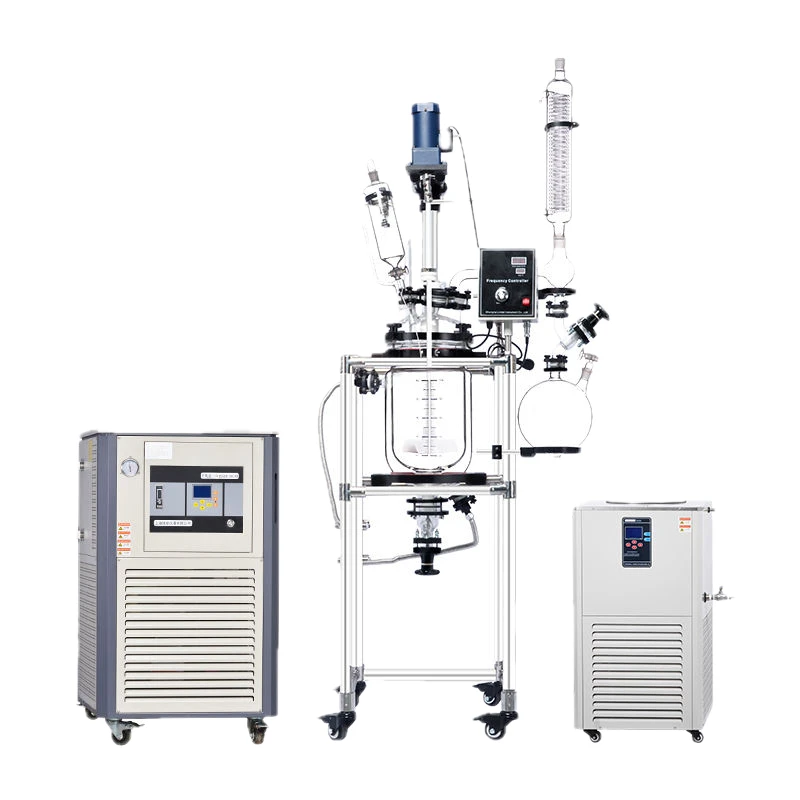

It can be jointed with vacuum pump, chilling circulator , heating circulator is widely used in the process like Combination, Reaction, Separation,Concentration, etc
It is adopted in the industry of chemical products, advanced material synthesis experiment, etc.
Jacketed Bioreactor -Glass Reactor

Bioreactor offers the Scientific community enormous flexibility in developing the next innovative process with an economical option.
The available reactors sizes (10L bioreactor, 20L, and 30L) allow for temperature control, steam sterilizing, stirring, product recovery, process monitoring, all in sleek 316L BPE vessel designed to meet the requirements of the Bio-pharmaceutical Industry. Our jacketed bioreactors allow for heating and cooling functions to accurately control the temperature of your products.
We utilise high-quality finishes, and each stainless-steel bioreactor is inspected and tested to ensure that all requirements are met.

Jacketed Bioreactor -Glass Reactor

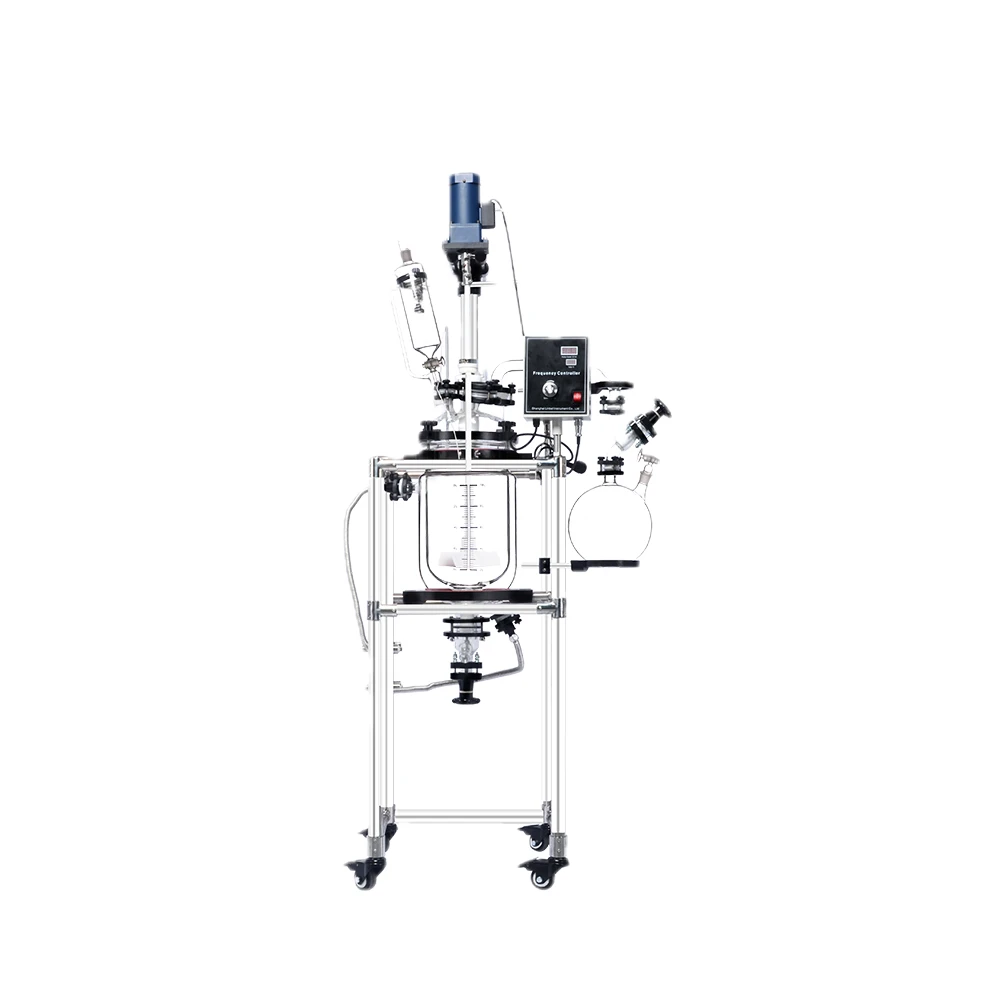

5L 10L 20L 30L 50L 100L 200L Jacketed Bioreactor Borosilicate 3.3 Glass Reactor
Model. GR-10L
Volume(L) 10
Jacket volume(L) 3
Condensation area(m²). 0.6
Feeding tank volume(L) 1
Recovery tank volume(L) 5

Kettle cover diameter.
Impeller diameter. 50# flangetype
Temperature sensor diameter. 40# flangetype
Condenser connection. 50# spherical grinding
Liquid feed inlet. 34# standard grinding×1
Feeding tank interface 40# standard grinding
Solid feed inlet. 80# flangetype
Glass assembly. High borosilicate glass 3.3
Main frame. SUS304
Stirring paddle Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium
Motor For viscous materials, high-power motors can be used
Move method. Lockable casters
Working temperature(℃). -120℃~300℃
Maximum temperature difference(℃). ≤60
Pressure in kettle(MPa). -0.1~0.1
Jacket pressure resistance(MPa). ≤0.1
Pressure rise rate of vacuum system. ≤2kPa/h
Mixing motor power(W) Common 200W/ explosion proof 370W
Speed regulation mode. Frequency control
Speed adjustment range(rpm) 0~600
Temperature sensor PT100
Temperature display accuracy(℃). ±0.1
Temperature range Water: RT~90℃
Oil: RT~300℃

Interface size of stainless steel insulation hose. ½in external screw thread
Seal material PTFE
Installation height of discharge valve(mm) 450
Power. 220V/110V,50/60Hz
Environment temperature(℃). 5~35
Relative humidity(%). ≤ 65
Size(mm). 600W×570D×2050H
Weight(kg). 70
