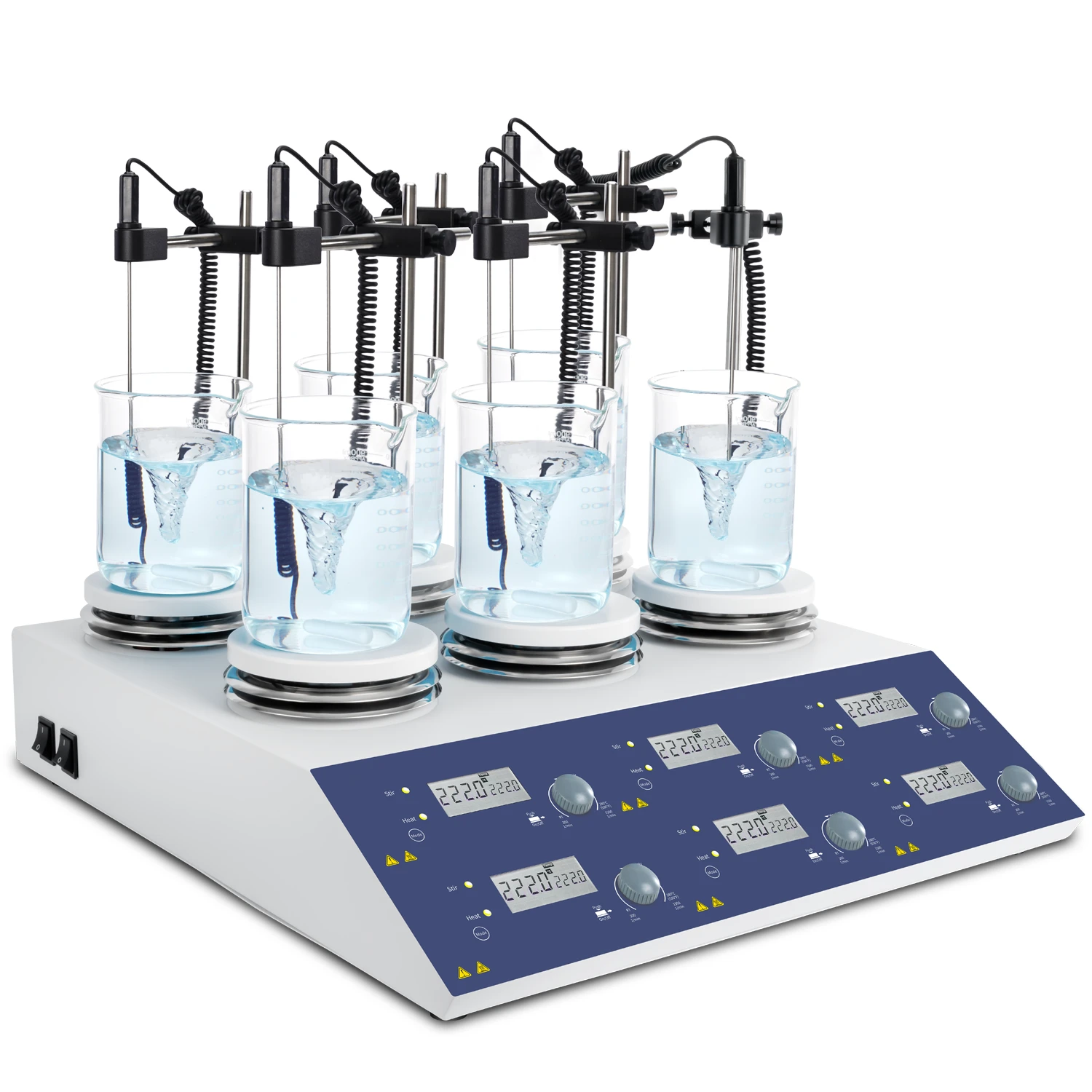

Hotplate Magnetic Stirrer 6 Place
Lead Time: 2-3 Weeks 6 Position Plates Multi-position Hotplate Hot Plate Stirrer Magnetic Stirrer Mixer Product Description Hotplate Magnetic Stirrer 6 Place
ME-MS-H280-S4/ MS-M-S4/ MS-H280-S6/ MS-M-S6 4/6 Channel LCD Digital Hotplate Magnetic Stirrer Features 4/6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control; Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
Powerful, rapid heating with accurate PID temperature control; Spark-free DC brushless motor with extended life and no maintenance; Compatible with various heating block or reaction vessels for a variety of application scenario . Ultra space-saving with 4/6 channel integrated in one instrument; “HOT” warning flashes on the LCD display if the work plate temperature is above 50℃ after the user turn off the power switch; Two independent safety circuits keep monitoring the instrument. When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety; Reliable safety mechanism, compliant to IEC61010-1UL61010-1BSEN61010-1CANCSA-C22.2NO.61010-1 and all other safety regulations of laboratory heating devices, competent with tasks without human surveillance. Applications The 4/6 channel hotplate magnetic stirrers are designed for parallel experiment and multiple parameter optimization, thus can serve as handy tools for Kjeldahl nitrogen determination, Soxhlet extraction and parallel synthesis, etc. They are ideal choices for test laboratories in food, animal feed, textile, soil, sewage, water treatment, pharmaceutical, polymerization, petroleum products, resin and plastic sectors. The user can handle 4 or 6 tests at the same time with stable performance, good reproducibility, high accuracy and easy operation. Hotplate Magnetic Stirrer 6 Place Product Paramenters
| Model | ME-MS-H280-S4 | ME-MS-M-S4 | ME-MS-H280-S6 | ME-MS-M-S6 |
| Work plate Dimension | Ø134mm | |||
| Work plate material | Aluminum with ceramic coating | |||
| Motor type | Brushless DC motor | |||
| Stirring positions | 4 | 6 | ||
| Max. stirring quantity (H2O) | 3LX4 | 3LX6 | ||
| Max. stirring quantity (H2O) per channel |
3L | |||
| Max. magnetic bar[length] | 40mm | |||
| Speed range | 200-1500rpm | |||
| Speed accuracy | ±20 rpm | |||
| Display | LCD display Speed / Temperature | |||
| Motor rating output | 5WX4 | 5WX6 | ||
| Heating power | 600WX4 | – | 600WX6 | – |
| Total power | 605WX4 | 5WX4 | 605WX6 | 5WX6 |
| Heating temp. range | 25-280℃ | – | 25-280℃ | – |
| Overheating protection | 420℃ | – | 420℃ | – |
| Temp. display resolution | 0.1℃ | – | 0.1℃ | – |
| Temp. accuracy |
±1℃(<100℃)， ±1%(>100℃) |
– | ±1℃(<100℃)， ±1%(>100℃) | – |
| External temperature Sensor ( optional ) |
PT1000 (accuracy±0.2℃ ) |
– | PT1000 (accuracy±0.2℃ ) |
– |
| Protection class | IP21 | |||
| Voltage | 100-120/200-240V 50/60Hz | |||
| Dimension [W x D x H] | 701X265X127mm,8.7Kg | 564X523X127 mm,12.7Kg | ||
|
Permissible ambient temp. and humidity |
5-40℃ 80%RH |
Hotplate Magnetic Stirrer 6 Place
| Weight | 13 kg |
|---|---|
| Dimensions | 57 × 53 × 13 cm |
