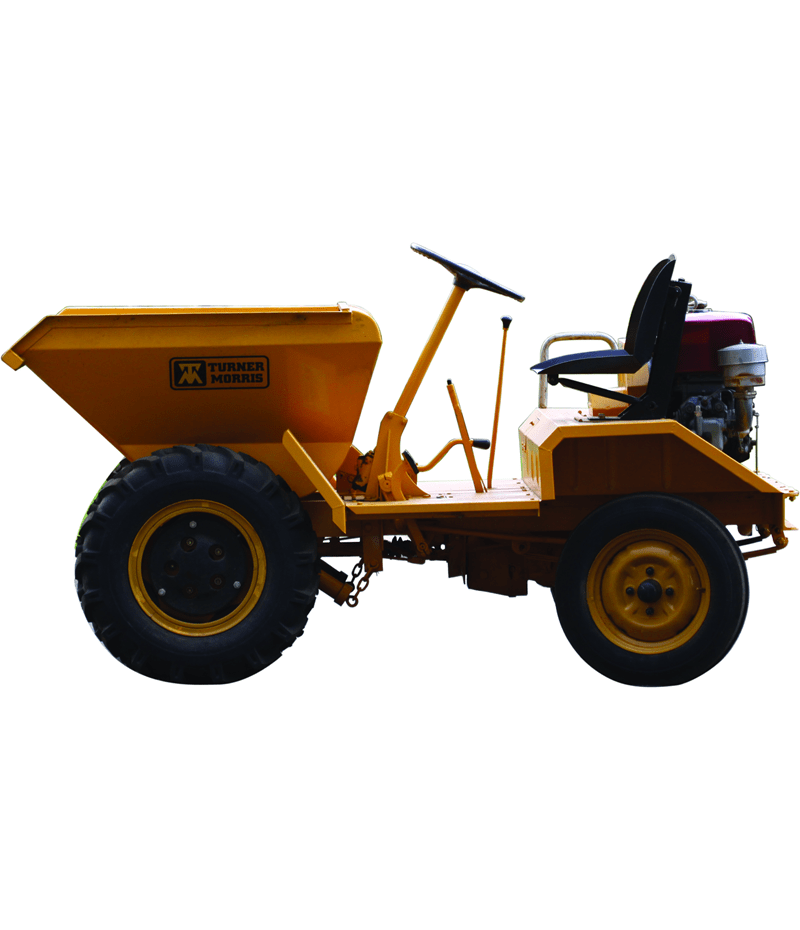

Dumper 1 Ton 4X2 Drive Diesel Water Cooled Gravity Tip

Description

The S-1000-FY10A is a robust 1-ton construction dumper designed for efficient material handling on building and earthmoving sites. Built for durability and reliability, this compact workhorse is ideal for transporting and dumping bulk materials such as soil, sand, gravel, rubble, and concrete in confined or rough terrain conditions.

Powered by a single-cylinder, water-cooled diesel engine with a crank (hand-start) system, this dumper delivers dependable performance with low maintenance requirements. Its 4×2 drivetrain ensures stable movement, while the mechanical gravity tip skip system allows for controlled and efficient unloading.

The dumper features a 500-litre skip capacity and a 1000kg payload, making it well-suited for medium-duty construction applications. With a 3-forward and 2-reverse gearbox, operators benefit from flexible control and manoeuvrability, supported by a tight turning radius of just 400cm.

Designed with safety and practicality in mind, the machine includes a handbrake system, neutral gearbox safety positioning, and a secure skip locking mechanism.

Key Features:

• Payload capacity: 1000kg
• Skip capacity: 500 litres
• Engine: Single-cylinder water-cooled diesel
• Starting system: Crank (hand start)
• Drive system: 4×2
• Gearbox: 3 forward / 2 reverse speeds
• Tipping system: Mechanical gravity tip
• Max speed: 24 km/h
• Turning radius: 400 cm
• Dimensions: 2690 x 1600 x 1450 mm
• Weight: 1000 kg

Operational Safety Guidelines:

This dumper must only be operated on level ground with the handbrake fully engaged during checks and start-up. The gearbox must remain in neutral, and the skip must be securely locked before operation. Operators must never carry passengers, overload the machine, or stand within the working or tipping zone. Full PPE must always be worn on construction sites.

Starting Procedure:

• Set speed control lever to “start” position
• Press and hold decompress lever
• Crank engine using starting handle until it starts

Stopping Procedure:

• Apply handbrake and shift gearbox to neutral
• Move accelerator bracket to stop position
• If needed, use speed control lever to fully shut down engine

This dumper is engineered for tough site conditions, offering a balance of power, stability, and ease of operation for demanding construction environments.
