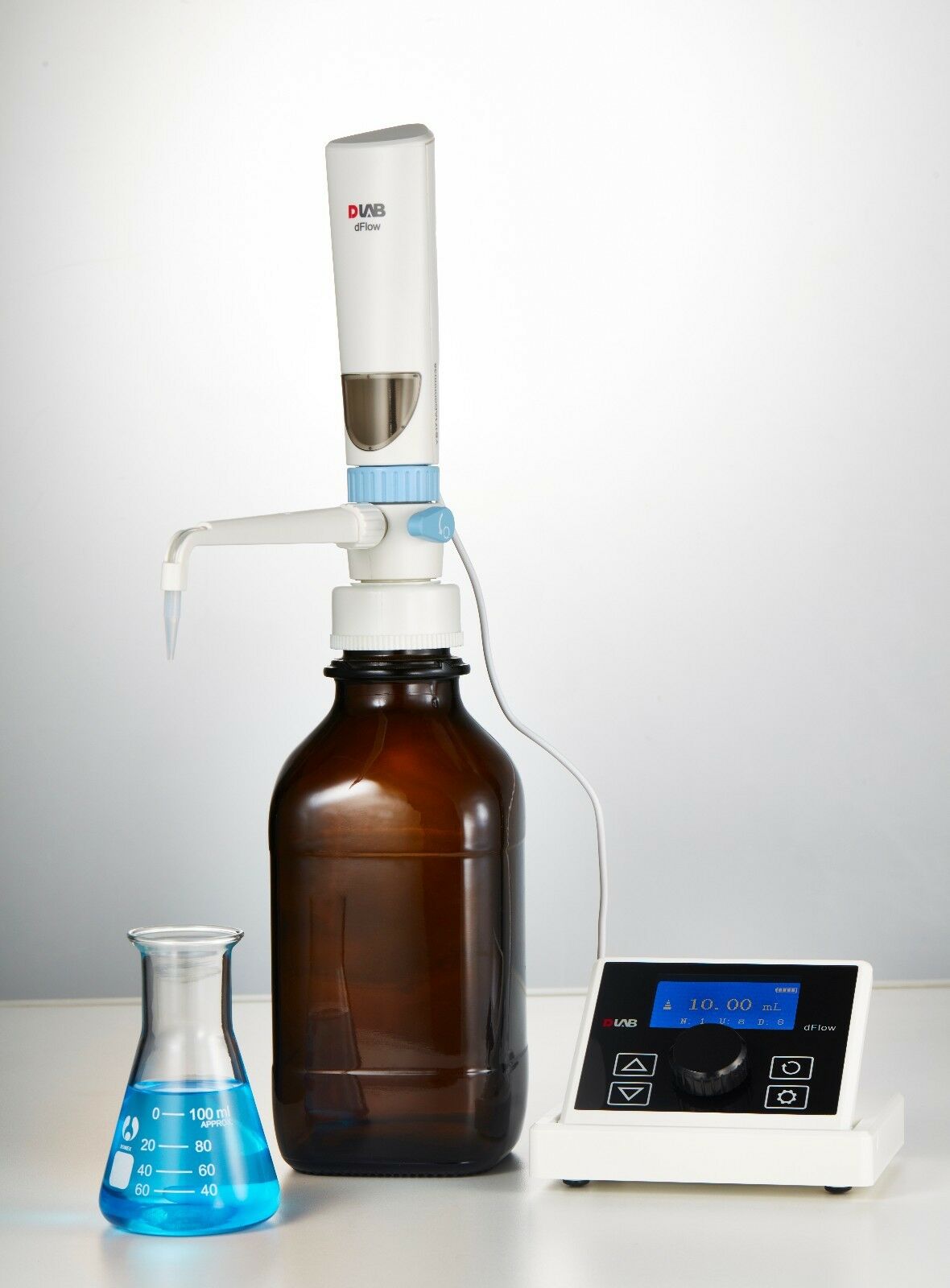

Dlab dFlow Digital Bottle Top Dispenser Volume Range 0.1 – 99.9mL. Ref 7012300001
dFlow system has high precision and accuracy, along with a motor lift to reduce the physical strain.
It is less affected by human factor and the dispenser and strepper have function options. Microprocessor-controlled, can be set all the parameters in the controller Motor lift piston system, making the dispense more precise and easy to use Large LCD screen, separate design with the main unit which makes the operation more convenient Two dispensing modes, including the dispenser and stepper functions Includes certification of calibration.
Features: • Motor operation minimizes the grip force
• Electronic control decreases the repetitive strain injury
• Remote control panel prevents manual disturbance during operation
• Two Dispensing modes:
• dispenser
• stepper function
| Specifications | dFlow |
| VolumeRange | 0.1-99.9mL, Max piston lift is 10mL, resolution is 100μL |
| Volume Accuracy | Dispenser: R = 10mL ±30μL; CV = 10ml ±10μL Stepper: R = 1mL ±6μL; CV = 1ML ±9μL |
| Operating Temperature Range | 10oC-30℃ |
| Quality Control | DIN EN ISO 8655 |
| Contro Type | External control |
| Weight | 6 kg |
|---|---|
| Dimensions | 25 × 20 × 35 cm |
