Digital Laboratory Hotplates

Digital Laboratory Hotplates

Digital Stainless Steel Laboratory Hotplates

Laboratory hotplates are essential devices used for safely heating, stirring, and mixing liquids, reagents, and samples in research, chemistry, and biology labs.

They provide controlled, uniform heating for applications like solvent evaporation, chemical synthesis, sample digestion, and distillation, often featuring magnetic stirring for improved efficiency.

Key Uses of Lab Hotplates:
Heating Solutions & Chemical Reactions: Used to heat beakers and flasks to specific temperatures, facilitating chemical reactions, solubility tests, and boiling.
Magnetic Stirring: Combined with a stir bar, they ensure uniform heating and mixing (homogeneity) of liquids.
Solvent Evaporation & Distillation: Used to evaporate solvents in samples or perform distillation in chemical experiments.
Sample Preparation & Digestion: Essential for heating samples in acid digestion or extraction processes in analytical chemistry.
Microbiology & Cell Culture: Used for maintaining stable temperatures for incubations, such as agar preparation, bacterial cultures, or yeast fermentation.
Melting & Drying: Used for melting solids, heating test tubes (using block heaters), or drying samples.
Digital Laboratory Hotplates

Cold rolled steel shell, treated with electrostatic spraying technology, corrosion-resistant and anti-aging;
The board surface is made of high-quality 201stainless steel plate, which is corrosion resistant, wear-resistant, has high hardness, and does not warp or deform at high temperatures;
The appearance design is beautiful and conforms to ergonomics. The enclosed structure adopts a special insulation design, which reduces the surface temperature of the electric heating plate shell and ensures safe operation;

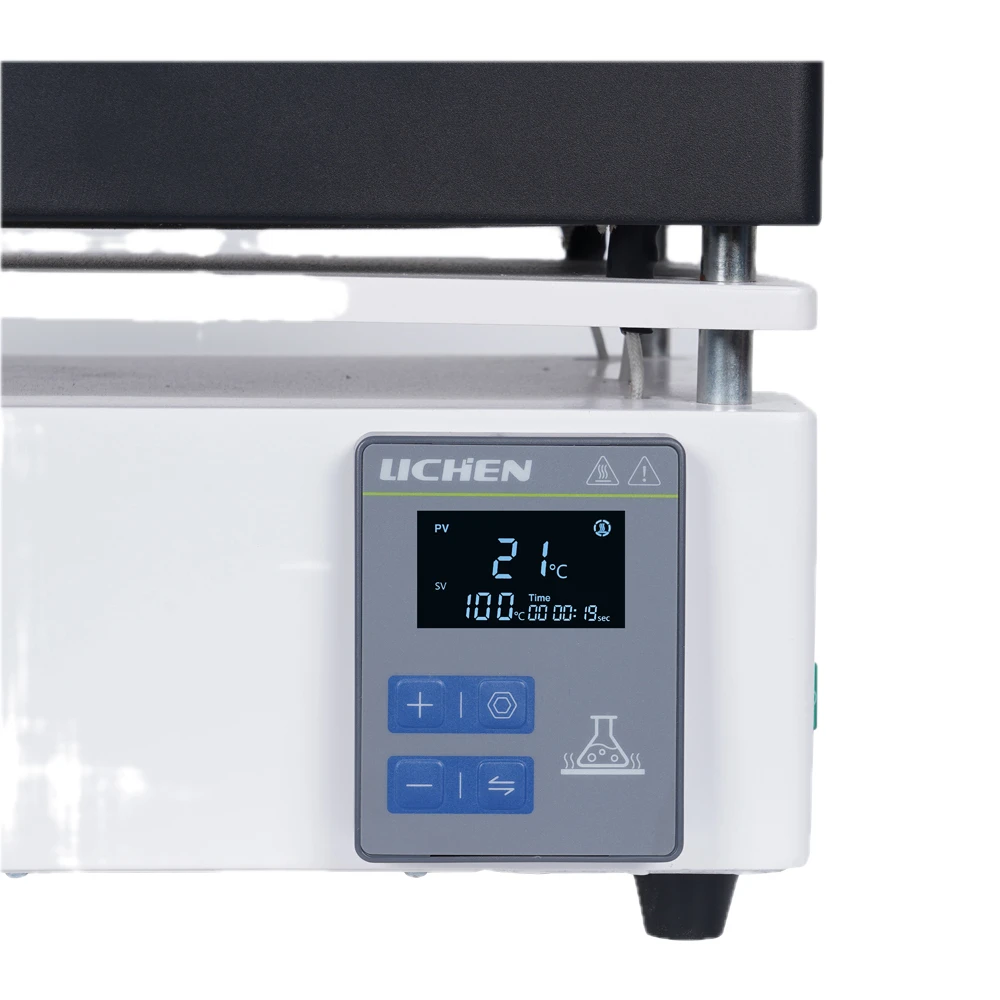

PID temperature control technology, LCD display, precise temperature control, clear and intuitive readings;
Closed heating, high thermal efficiency, fast heating, no open flame, safe and reliable;
It has functions such as timing, over temperature alarm, automatic error correction, and power-off memory.
The timing mode is optional (no timing function, timing upon startup, constant temperature timing);
Equipped with an electronic lock function to prevent the device from being accidentally operated by others, which may cause damage to the sample, making it safer;
Equipped with self-tuning function, reducing temperature overshoot, stabilising time, and better controlling temperature accuracy.
Digital Laboratory Hotplates

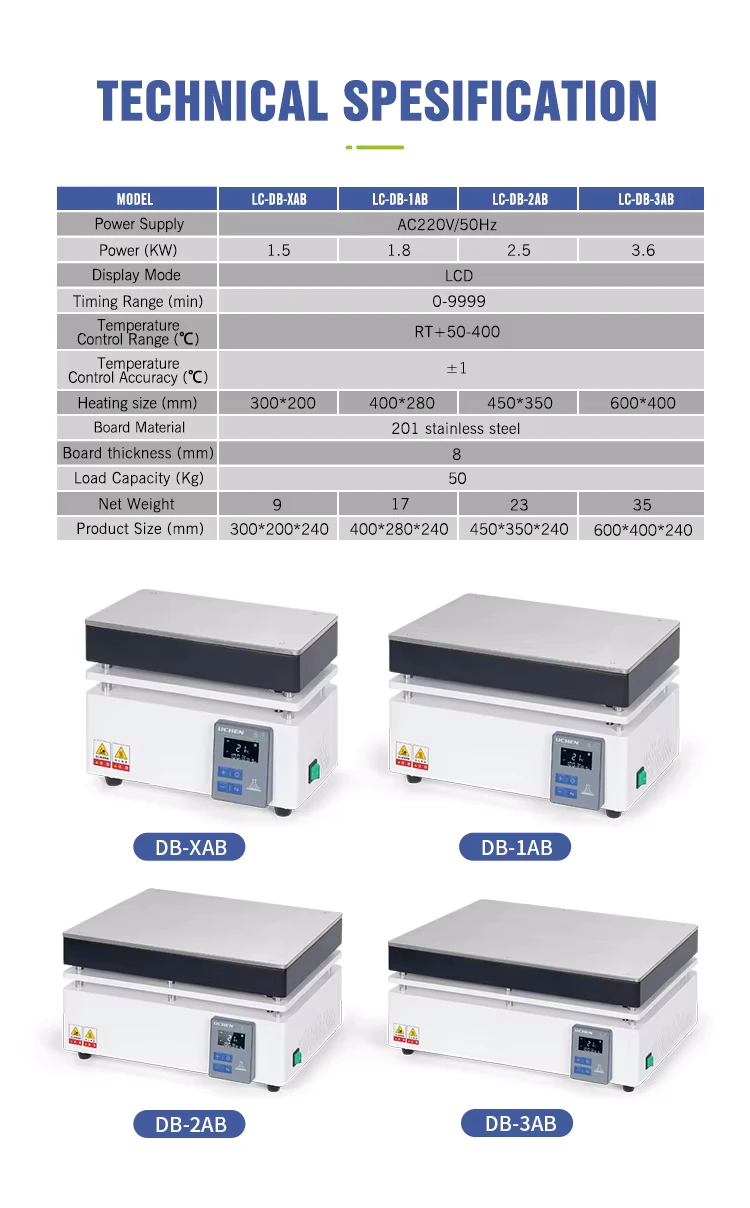

Key attributes

Rated Power. 1.5-3.6KW
warranty. 1 year
Max Temperature 400℃
model number LC-DB-AB
brand name. Lachoi
material. 201stainless steel
weight 9-35kg
Product name. Stainless Steel Heating Plate
Voltage V/Frequency Hz AC220/50
Power 1.5-3.6KW

Working Plate Material 201 stainless steel
Working Size 60*40cm(MAX,)
Max. Temp. 400℃
Motor Type. DC Brushless Motor
