Lead Time: 4-7Weeks

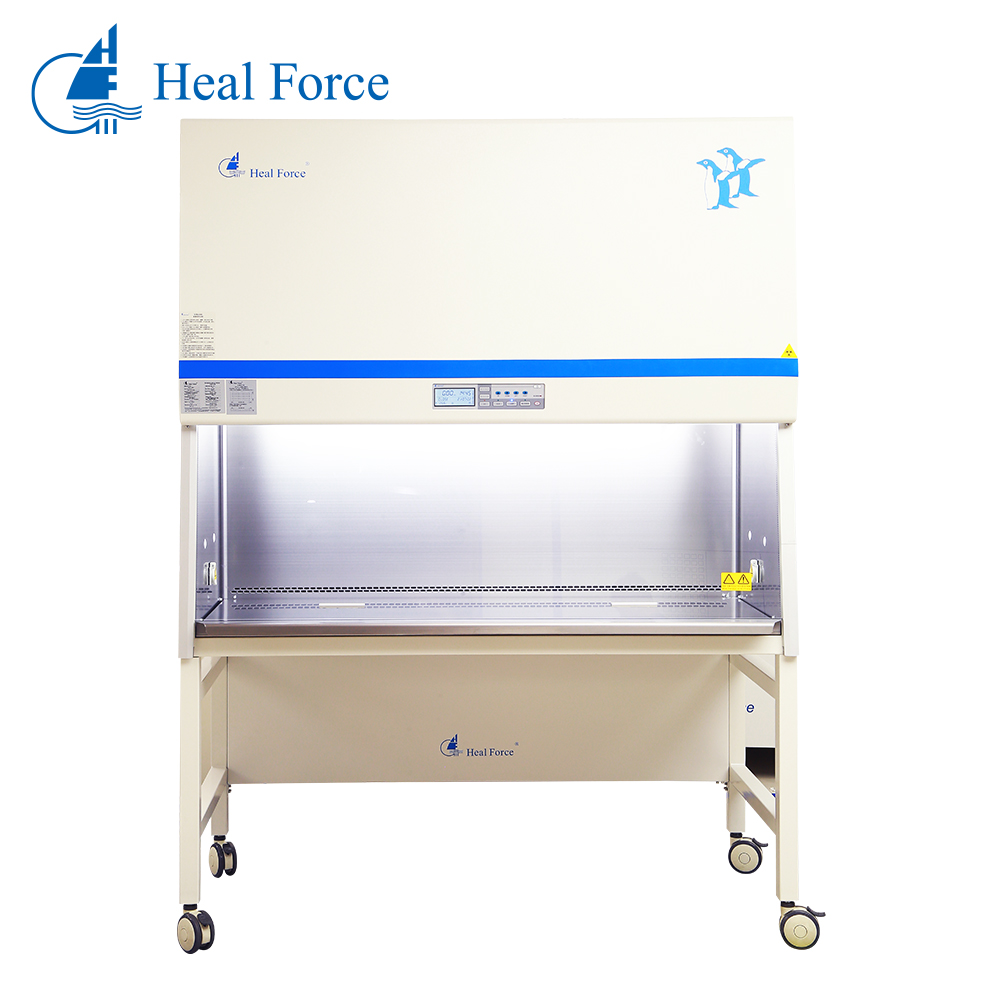

A Hi-Safe and Smart Biosafety Cabinet
– CE/ISO9001/ISO12485/EN12469/NSF/CFDA certified, registration certificate of China Medical Device
– Double airflow monitoring sensors to ensure stable airflow speed: Inlet 0.53m/s, vertical 0.35m/s
– Intuitive German-made EMB fan motor sensitively reacts to interior air pressure change
– Double ULPA filters with with life indicator, 99.9995% filtration efficiency against 0.12 micron meter particules
| Model | HFsafe-1200LC |
| Nominal Size | 1.2 meters(4′) |
| External Dimensions with Base Stand (WxDxH) | 1340x790x2130 mm 52.8″x 31.1 “x83.9” |
| Internal Work Area, Dimensions (WxDxH) | 1250x575x625mm 49.2″x22.6″x24.6″ |
| Average Airflow Velocity* | |
| Inflow | Filters provide 99.999% typical efficiency for particle size of 0.1 to 0.2 microns |
| Downflow | Filters provide 99.999% typical efficiency for particle size of 0.1 to 0.2 microns |
| Airflow Volume | |
| Inflow | 477m3/h(281cfm) |
| Downflow | 945m3/h(556cfm) |
| Exhaust | 477m3/h(281cfm) |
| ULPA Filter Typical Efficiency | |
| Downflow | Filters provide 99.999% typical efficiency for particle size of 0.1 to 0.2 microns |
| Exhaust | Filters provide 99.999% typical efficiency for particle size of 0.1 to 0.2 microns |
| Biosafety Protection Test | |
| Personnel Protection Test | Kl-Discus containment and microbiological testing is performed |
| Product Protection Test 1~8X106 | ≤5CFU |
| Cross-contamination Test 1-8×106 | ≤2CFU |
| Fluorescent Light Intensity | ≥650Lux (foot candles) |
| Excellent light distribution | Yes |
| RMS | ≤5µm |
| Cabinet Construction | |
| Main Body | Steel with white oven-baked epoxy-polyester |
| Work Zone | Stainless steel, type 304 |
| Side Walls | Stainless steel, type 304 |
| Window material | Hardened/laminated safety glass |
| Power Supply* | |
| 220V/50Hz | Yes |
| 220V/60Hz | Yes |
| 110V/60Hz | Yes |
| Weight | 220 kg |
|---|---|
| Dimensions | 79 × 134 × 213 cm |
