Name: Biological Safety Cabinet Class II B2
SKU: BSC-IIB2-1800
Availability: InStock

Biological Safety Cabinet Class: BBSC-IIB2-1800

Lead Time: 4-6 Weeks

Biological Safety Cabinet Class II B2

Class II B2 Biological safety cabinet is biological safety isolation equipment used in biological safety laboratories or other laboratories, It can prevent harmful or unknown biological particulate aerosol from escaping during operation, it’s suitable for experiments with radioactive nuclides and volatile chemicals.

Protection: Operator, Samples and the environment.

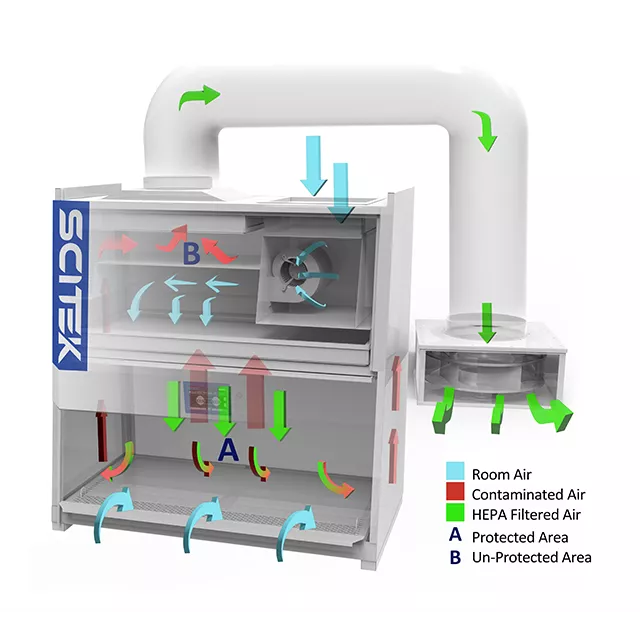

Airflow System: 100% air exhaust

Work area: Negative pressure

Biosafety Cabinet Class II Features:

UV sterilization function and timing function can be set by appointment.
Automatic air speed adjustable.
With memory function in case of power-failure.
Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height).
Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
With German EBM blower.
Standard with AAF ULPA filter.

BSC Class II Type B2 Specifications:

Model	BSC-IIB2-1100	BSC-IIB2-1400	BSC-IIB2-1500	BSC-IIB2-1800
External Size (WxDxH)mm	1050x836x2150	1400x836x2150	1500x836x2150	1800x836x2150
Internal Size (WxDxH)mm	950x666x600	1300x666x600	1350x666x600	1625x666x600
Tested Opening	Safety Height 200mm (8”)
Max.Opening	400mm
Work Surface Height	800mm
Airflow System	100% air exhaust
Downflow Velocity	0.34m/s
Inflow Velocity	0.55m/s
Blower	German EBM Blower
Filter Specification	Two, AAF ULPA filter, 99.9995% efficiency at 0.12 μm, filter life indicator
Cleanliness Grade	Class 100 (ISO14644.1 Class 5)
Display	LCD touch screen
Alarm	Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height
Front Window	Motorized, Two-layer laminated toughened glass ≥ 5mm. Anti UV.
LED Lamp	30Wx2	36Wx2	36Wx2	36Wx2
UV Lamp	20Wx1	30Wx1	40Wx1	40Wx1
Rated Consumption	2060W	2082W	2092W	2092W
Illumination	≥800Lx
Sound Emission	≤67dB(A)
Power Supply	AC220V±20, 50Hz，110V,60HZ (Optional)
Material	External Main body: Electro-galvanized steel with antimicrobial Powder Coating Work surface: 304 stainless steel
Standard Accessories	1.Base stand; 2.Air Velocity sensor; 3.AAF ULPA filter; 4.EBM Blower; 5.LCD touch screen; 6.LED lamp; 7.UV lamp; 8.Waterprof socket; 9.Motorized Front window; 10.Caster; 11.Exhaust Blower; 12.Exhaust duct (Φ300mm)
Optional Accessories	1.Gas tap; 2.Water tap; 3.IV bar with hooks; 4.Pressure meter
Net Weight	284kg	323kg	350kg	430kg
Gross Weight	346kg	404kg	435kg	550kg
Shipping Size (WxDxH) mm (Main Unit)	1210x1140x1710	1560x1140x1710	1650x1140x1710	1950x1140x1710
Shipping Size (WxDxH)mm (Exhaust Blower)	700x700x500	700x700x500	700x700x500	700x700x500
Shipping Volume (m3)	2.7	3.4	3.5	4.1
