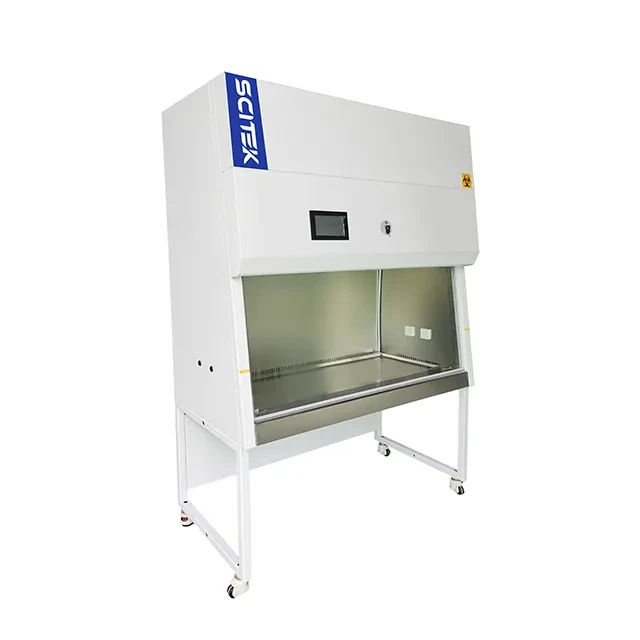

Name: Biological Safety Cabinet Class II A2
SKU: BSC-IIA2-2000
Availability: InStock

Biological Safety Cabinet Class II A2: BSC-IIA2-2000

Lead Time: 4-6 Weeks

Biological Safety Cabinet Features:

Biosafety Cabinet

Standard with high precision Air Velocity sensor.
UV sterilization function and timing function can be set by appointment.
With memory function in case of power-failure.
Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height).
Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
Work area surrounded by negative pressure, prevent leakage,improve Biosafety.
Foot switch: adjust front window height, to avoid airflow turbulence caused by arm movement.

Biological Safety Cabinet Specifications:

Biological Safety Cabinet Class II A2

Model	BSC-IIA2-1500	BSC-IIA2-2000
Internal Size (W×D×H) mm	1350×600×600mm	1850×625×575mm
External Size (W×D×H) mm	1500x750x2250mm	1940x790x2130mm
Tested Opening	Safety Height 200mm (8”)
Max.Opening	440mm
Airflow System	70% air recirculation, 30% air exhaust
Downflow Velocity	0.33±0.025m/s
Inflow Velocity	0.53±0.025m/s
Total Air Exhaust	500m3/h	705m3/h
Filter Specification	Two, HEPA filter, ≥99.995% efficiency at 0.3 μm
Supply HEPA Filter Size (mm)	1380x470x69	1880x495x69
Exhaust HEPA Filter Size (mm)	920x420x69	1420x420x69
Cleanliness Grade	Class 100 (ISO14644.1 Class 5)
Display	Full color 7.0-inch touch screen
Front Window	Motorized, Tempered Glass
LED Lamp	16W x2
UV Lamp	40W x1
Rated Consumption	1800W	2200W
Illumination	Average Illuminance≥650 lx, the measured value of each illuminance≥ 430 lx
Sound Emission	≤67db
Vibration Semi-peak Value	≤5μm
Power Supply	AC220V±20, 50Hz; 110V, 60HZ (Optional)
Material	External Main Body: Cold rolling steel electrostatic spraying exterior
Work Surface: 304 stainless steel
Standard Accessories	Base stand Air Velocity sensor HEPA filter Full color 7.0-inch touch screen LED lamp UV lamp Waterprof socket Motorized Front window Caster Foot Switch
Optional Accessories	1.Gas tap; 2.Water tap; 3.IV bar with hooks
Net Weight	320kg	401kg
Gross Weight	400kg	461kg
Shipping Size(W×D×H) mm	1630×880×2380	2070×920×2260
Shipping Volume (m3)	3.5	4.4
