Lead Time: 4-6 Weeks

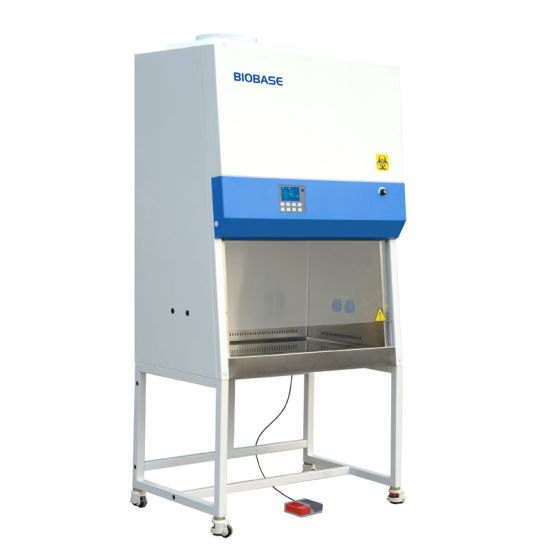

Biosafety Cabinet with ISO Certificate BCS-1800IIB2-X
A biological safety cabinet (BSC) is a primary engineering control used to protect personnel against biohazardous or infectious agents and to help maintain quality control of the material being worked with as it filters both the inflow and exhaust air
A biosafety cabinet is designed to provide both a clean work environment and protection for employees who create aerosols when working with infectious agents or toxins.
Biological Safety Cabinet Class II A2
The Special Cabinets are manufactured upon an order.
Technical Parameters:
Biological Safety Cabinet Class II A2
| Model | BSC-1100IIB2-X | BSC-1300IIB2-X | BSC-1500IIB2-X | BSC-1800IIB2-X | |
| Internal Size
(W*D*H) |
940*600*660 mm | 1150*600*660 mm | 1350*600*660mm | 1700*600*660 mm | |
| External Size
(W*D*H) |
1100*750*2250mm | 1300*750*2250mm | 1500*760*2250mm | 1873*775*2270mm | |
| Tested Opening | Safety Height 200 mm(8”) | ||||
| Max Opening | 420mm(17”) | 420mm(17”) | 500mm(20”) | 480mm(20”) | |
| Inflow Velocity | 0.53±0.025 m/s | ||||
| Down flow Velocity | 0.33±0.025 m/s | ||||
| Pre-Filter | Washable | ||||
| HEPA Filter | Two, 99.999% efficiency at 0.3 μm,filter life indicator. | ||||
| Front Window | Motorized,two-layer laminated toughened glass ≥ 5mm,anti UV. | ||||
| Noise | EN1246949 ≤ 58 dB | ||||
| UV Lamp | 30W*1 | 30W* 1 | 40W* 1 | 40W*1 | |
| UV timer, UV life indicator, emission of 253.7 nanometers
for most efficient decontamination. |
|||||
| Illuminating Lamp | LED Lamp | LED Lamp | LED Lamp | LED Lamp | |
| 12W*2 | 14W*2 | 16W*2 | 16W*2 | ||
| Illumination | ≥1000Lux | ||||
| Consumption | 700W | 850W | 900W | 1200W | |
| Waterproof Sockets | Two, total load of two sockets: 500W | ||||
| Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time,
inflow and downflow velocity, filter life, humidity and temperature, system working time etc. |
||||
| Control System | Microprocessor | ||||
| Airflow System | 0% air recirculation, 100% air exhaust | ||||
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. | ||||
| Exhaust Duct | 4 meters PVC duct, Diameter:300mm | ||||
| Material | Work Zone: 304 stainless steel | ||||
| Main Body: Cold-rolled steel with anti-bacteria powder coating. | |||||
| Work Surface Height | 750mm | ||||
| Caster | Foot master caster | ||||
| Power Supply | AC 220V±10%, 50/60Hz; 110V±10%, 60Hz (110V/60Hz is not applicable to BSC-1800IIB2-X) | ||||
| Standard Accessory | Illuminating lamp, UV lamp*2,base stand, remote control, foot switch, exhaust blower,
exhaust duct, drain valve, waterproof sockets*2, pipe strap*2 |
||||
| Optional Accessory | Water and gas tap, Electric height adjustable base stand | ||||
| Gross Weight | 246kg | 276kg | 302kg | 408kg | |
| Package | Main Body | 1230* 990* 1810 mm | 1460*1050*1800 mm | 1650*990*1810 mm | 2000*950*1820 mm |
| Exhaust Blower (W*D*H) | 970* 810* 630 mm | 970* 810* 630 mm | 970* 810* 630 mm | 970* 810* 680 mm |
| Dimensions | 2000 × 950 × 1820 cm |
|---|
