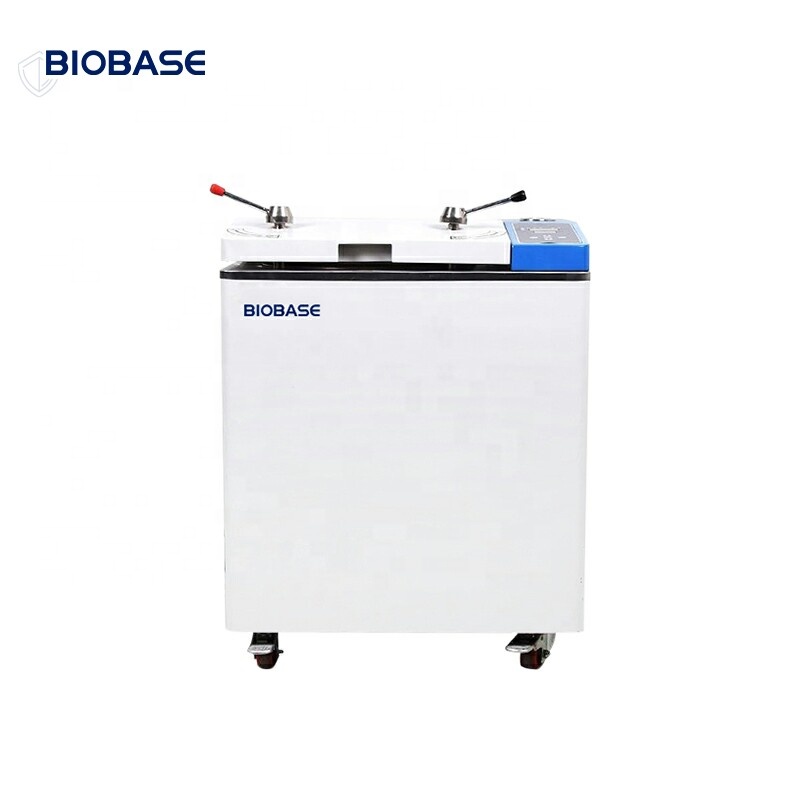

Autoclave Vertical, Top Loading-Flip Open 100L

Autoclave Vertical, Top Loading (Flip Open) 100L

Lead Time: 4-6 Weeks

Vertical Autoclave is mainly used in hospitals, laboratories, universities and other institutes where users need to sterilize temperature-resistance solid and liquid.

• Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying run automatically.
• LED screen displays all steps of full process as well as error codes.
• Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
• Adopting certain temperature (98~102℃)exhaust method and dynamic pulse exhaust method to completely empty the cold air inside chamber for ensuring steam saturability.
• Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
• Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during sterilization, so as to keep the outside clean and dry.
• Independent knock-down service window, easy for repairing and maintenance.
• Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.

Safety feature:

1. Over pressure, safety valve can automatically open to release pressure.

2. Over temperature, the system will power off automatically.

3. Sensor at door closing position, to check the door status. If door is open, operation will stop.

4. Anti dry-out function. If water level is too low, system will power off and error code displays on screen.

5. Over current, over voltage or electric leakage protection apparatus-air switch.

6. The door is covered with safety shell which is made of thermal insulation material to protect operator from burning by heat and looks nice.
