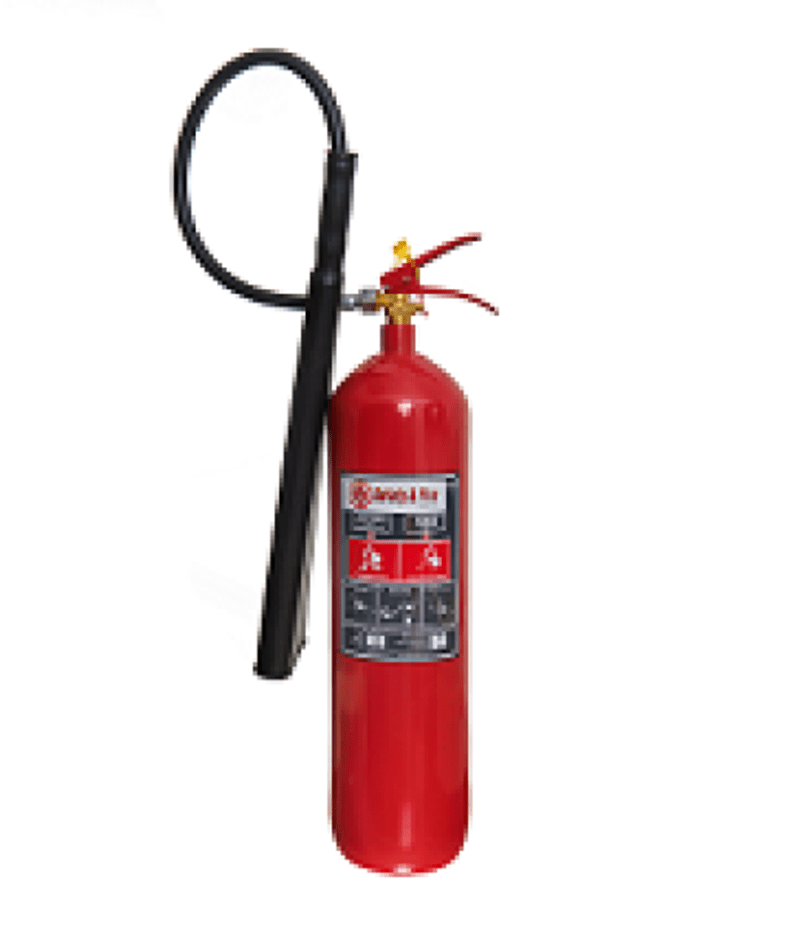

5kg Co2 Fire Extinguisher

Description

The 5kg CO₂ Fire Extinguisher is designed to combat Class B (flammable liquids) and electrical fires effectively, making it an essential safety tool in environments such as offices, server rooms, workshops, laboratories, and industrial settings. This extinguisher discharges carbon dioxide gas under high pressure to suffocate flames without leaving any residue, ensuring minimal damage to sensitive equipment and surfaces.

Key Features:

• Extinguishing Agent: Carbon Dioxide (CO₂) – suitable for electrical and flammable liquid fires

• Capacity: 5kg – ideal for medium to large fire risk areas

• Discharge Mechanism: High-pressure discharge horn with non-conductive material for safe use on live electrical equipment

• Clean Agent: Leaves no residue – safe for use on electronics and sensitive machinery

• Corrosion-Resistant Body: Durable steel cylinder with anti-corrosion paint for long-term reliability

• Pressure Type: Stored pressure or cartridge-operated (depending on model)

• Easy Operation: Simple pull-pin and squeeze-grip activation for quick response

• Safety Approved: Complies with local and international fire safety standards (e.g., BS EN 3 or equivalent)

• Mounting Bracket: Supplied with wall bracket for secure and accessible installation

• • Charge – 2.0kg
  • Full Weight – 8.08kg
  • Empty Weight – 6.08kg
  • Discharge Time – 10sec
  • Range of Discharge – 1m
  • Working Pressure – 5000 kpa
  • Hydrostatic Test Pressure – 2500 kpa

• 5kg Extinguisher Co2 – Steel Alloy


  Label	Value
  Cylinder Length	650±10mm
  Corrosion Protection	L
  Range of Discharge	2.0M
  Material	34CrMo4
  Wall Thickness of Cylinder	2.5mm
  Volume	7.5
  Cylinder Diameter	136±1.3mm
  Cylinder Empty Weight	7.60kg
  Discharge Time	>13Sec
  Full Empty Weight	12.8kg
  Full Weight	17.8kg
  Charge	5.0kg
  Filling Ratio	0.66
  Working Pressure	4500kPa
  Hydrostatic Test Pressure	25000kpa
  Bursting Pressure of Cylinder	>400Bar
  Safety Device	210±15Bar
  Fire Rating	34B
  Working Temperature	-30°C ~+60°C
  SABS Specification	SANS 1567

  Lead time: Estimate of 1-3 Working days depending on stock availability
